LINEALIGHT

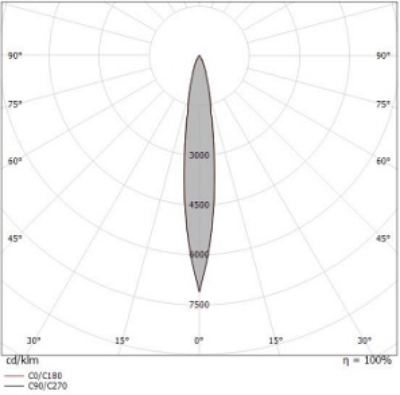

Single emission projectors for outdoor application. The warm white LED light source with a wide flood light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 659 lm, with a 109.8 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66.

Luminaire housing made of dezincificationresistant cast brass. Water pressure-tight underwater floodlight for the illumination of non-accessible ponds, pools and water features with a depth up to 20 metres. The cast brass used in these luminaires is the optimal material for long-term underwater use. The material is approved for drinking water and is resistant to sea wateR. IP68,IK09.

BN-2-D is a DINrail mounted bridging module that allows 2 or more iLight iCANnetTM network segments to be connected together or arranged logically into floors or areas for ease of management. The bridge is also used to extend the network as a repeater where more than 500m of cabling is required or more than 100 network devices are used on one segment. BN-2-D also allows network messages to be filtered to ensure optimal performance in larger networks. BN-2-D allows multiple network segments to be connected together, enabling up to 65,000 devices to exist on a single system. It also improves reliability of larger systems by isolating and containing any network cabling faults when used correctly.

Surface mount track spotlight made of die cast aluminium housing and come with different diameter such as Ø55, Ø65, Ø70 and Ø75mm. Wattage from low 6W to 35W max. Fixture finishing available in Black or White color. Wide bean angles are avaiable. IP20
