XAL

LINEAR DOWNLIGHT
INDOOR LIGHTING
UNICO L4_090-7L453F0B21

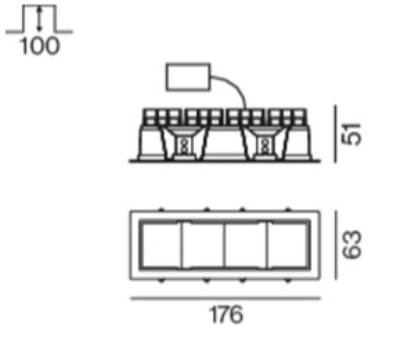

Recessed rectangular multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; suitable for ceiling thickness of 2-25 mm;

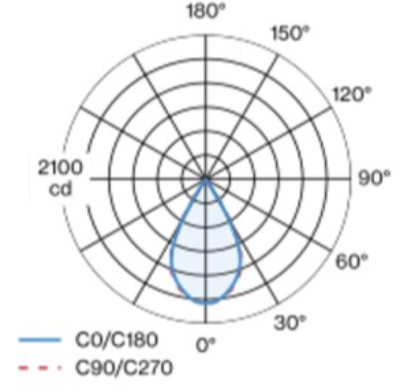

equipped with four flood square light elements; symmetrical light distribution with precise radiation characteristic. High quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 19. Protection IP20.

Specification

Power
13W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1380LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 90
Driver
DALI DRIVER

See more
