Product Detail
Home Products Detail

Products

IGUZZINI

WALL LIGHT
OUTDOOR LIGHTING
IPRO_BK05

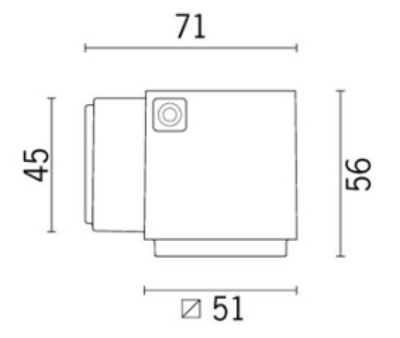

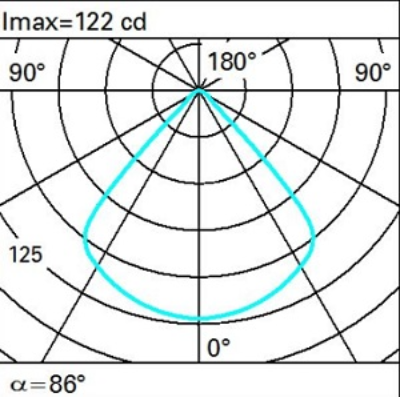

Outdoor wall-mounted luminaire come with wide flood optic. The luminaire consists of an optical assembly upper cap and base for fixing to the wall. The optical assembly upper cap and base are made of die-cast aluminium alloy coated with liquid acrylic paint in high level of resistance to weather and UV rays. Transparent tempered sodium, calcium safety glass with customised grey serigraphy 4 mm thick joined to the optical assembly with silicone. The adjustable fixing bracket is made of painted aluminium. It has a single stainless steel M14x1 cable gland and FEP outlet cables L=150mm, electronic circuit with warm white LED and highly reflective thermoplastic internal reflector. IP66, IK07

Specification

Power
3.2W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
200LM
Finishing
BLACK
IP Rating
IP66
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING

The power supply driver is not provided and is to be ordered separately.

The total absorbed power is 26 W. The power supply cable is included and features a 1 m length.

The device features protection class III and can be wall lights, ceiling or floor-mounted.


LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING

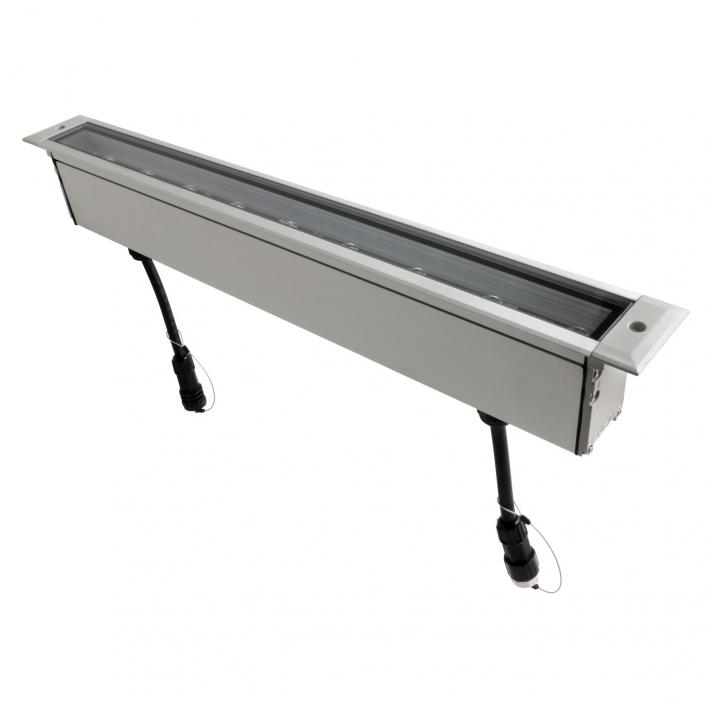

Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 9 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98672(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
WEVER & DUCRE
RECESSED DOWNLIGHT
INDOOR LIGHTING
Rectangular ceiling recessed downlight made from die-cast aluminium; housing Black Matt powder coated; matt texture; with reflector in Black Matt wet painted; matt fine texture. The ingrss protection degree is IP20.
