IGUZZINI

RECESSED DOWNLIGHT
INDOOR LIGHTING

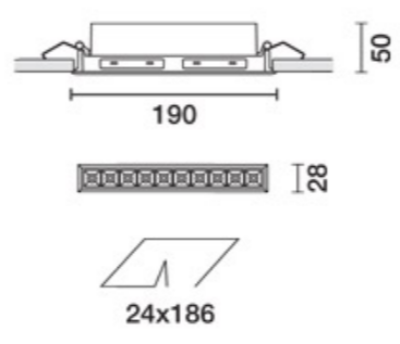

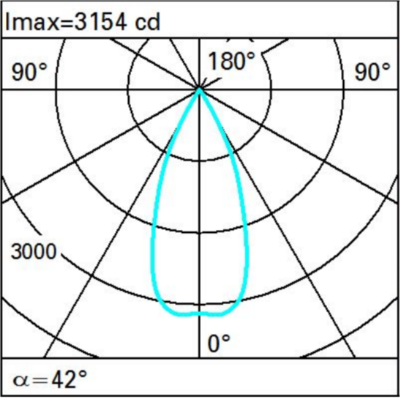

Laser Blade XS_QE90

Linear miniaturised recessed luminaire with 10 optical elements for LED lamps - fixed optics. Despite the ultracompact size of the product, the patented technology of the optic system guarantees an efficient flow and a high level of controlled glare visual comfort. Main body with die-cast aluminium radiant surface, version with perimeter surface frame. Metallised, thermoplastic, high definition Opti Beam reflectors, integrated in a set-back position in the anti-glare screen.

Specification

Power
20W.
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1536LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

SIMES
UP/DOWN WALL LIGHT
OUTDOOR LIGHTING

Die-cast EN AB-47100 aluminium housing with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Silicone gaskets. Painting Process : 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 07. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 179 lm, with a 89.5 lm/W nominal luminous efficacy. The device body is made of plaster and features a white finish; the diffuser is made of polyamide. The ingress protection degree is IP20; the total weight is of 0.42 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 2 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 85 x 85 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT
TRACKLIGHT
INDOOR LIGHTING
Single emission projectors for indoor application. The super warm white LED light source with a shaper medium distance light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 98; the source luminous flux is 2799 lm, with a 103.7 lm/W nominal luminous efficacy.
ERCO
RECESSED DOWNLIGHT
INDOOR LIGHTING

Luminaire: cast aluminium, black powder-coated, designed as heat sink, with connection cable L 1m. Gimbal suspension: polymer, black. Luminaire can be tilted from 0° to 40°, and can be tilted through 60° in the longitudinal direction of the channel.
