Product Detail
Home Products Detail

Products

WE-EF

SPOTLIGHT
OUTDOOR LIGHTING
FLC301_145-7531 + 0025
IP66. IK07. Marine-grade, all aluminium construction. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Two cable entries. Mains voltage versions, ON-OFF Class I. Integral EC electronic converter. 24VDC low voltage versions, ON-OFF Class III. DALI (only 4W available) Class I. Knuckle permits 340° rotation, forward tilt 73° and backward tilt 90°. Remote 24VDC power supply to be ordered separately.Optical accessories are factory-installed. To be specified at time of ordering.

Specification

Power
6W
Color Temperature
3000K
Light Source Type
1 LEDS
Lumen Output
518LM
Finishing
GREY
IP Rating
IP66
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

SPARK
SUSPENDED LINEAR LIGHT
INDOOR LIGHTING

Office linear light system offering high efficiency 142Lm/w, microprismatic lens technology keeps glare to a min UGR<19, ensuring a comfortable visual experience. The lights feature DALI 2.0 DT8 for easy dimming and CCT tunable from 2700K - 6500K. The fixture connect seamlessly for a uniform lighting effect and the prewired trunking rail with 11 cables simplifies installation and maintenance.

Optics available 45°, 50° and 60°.

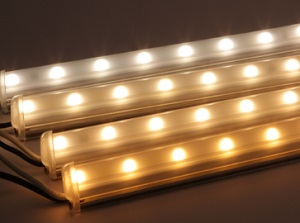

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.535 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99914 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with three wide flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 71°; high quality reflector with micro-faceted.

LUCE & LIGHT
SPOTLIGHT
OUTDOOR LIGHTING

Ginko 1.0 Outdoor surface mounted projector light (ceiling, wall, ground, spike), housing made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version), body made of brass, produced entirely on a CNC lathe. Bracket made of brass. Optics available: 12°, 19°, 36°, sharp 38°, 58°, 16°x36°, 36°x16°, 12°, 19°, 36°, 58°. IP66, IK07.
