Product Detail
Home Products Detail

Products

WE-EF

INGROUND UPLIGHT
OUTDOOR LIGHTING
ESC130_185-7503

IP67. IK07. Stainless steel inground section. Die-cast hood made from marine-grade aluminium alloy. Construction helps to prevent accumulation of insects, leaves and debris on lens and restricts glare to passers-by. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 1.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control.

Specification

Power
24W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
2429LM
Finishing
GREY
IP Rating
IP67
Color Rendering
CRI 80
Driver
DALI DRIVER

See more

LUCE & LIGHT
SPOTLIGHT
OUTDOOR LIGHTING

Pivot 2.0,projector for outdoor applications surface mounted (ceiling, wall, ground, spike), surface mounted (ceiling, wall, floor)Power consumption: 10W, 14WPower supply: 24Vdc

Lumen output at source: 1173 lm (3000K, 14W, CRI >90), 1397 lm (3000K, 14W, CRI 80), 821 lm (3000K, 10W, CRI >90), 978 lm (3000K, 10W, CRI 80)

Delivered lumen output: 1064 lm (3000K, 25°, 14W, CRI 80), 676 lm (3000K, 25°, 10W, CRI >90), 835 lm (3000K, 25°, 10W, CRI 80), 862 lm (3000K, 25°, 14W, CRI >90),1 COB LED, 3-st

APEX
SURFACE TRACKLIGHT
INDOOR LIGHTING
Aluminium housing track spotlight come with various of color temperature from 2700K to 5700K. DC24V and available beam angle in 15°, 30° and 50°.
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

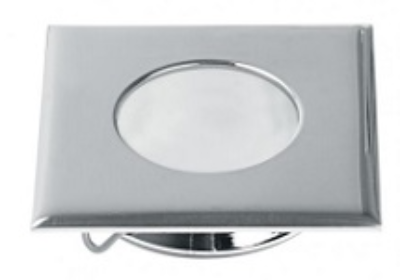

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44.

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium . The ingress protection degree is IP44.
