WE-EF

INGROUND UPLIGHT

OUTDOOR LIGHTING

ETC120_185-7737

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens, max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 1.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. 20° tiltable and 355° rotatable. 1-10 V analogue dimming or DALI interface available on request. Luminaire installation blockout and sealable junction box included in supply.

Specification

Power

Color Temperature

3000K

Light Source Type

3 LEDS

Lumen Output

1059LM

Finishing

STAINLESS STEEL

IP Rating

IP69

Color Rendering

CRI 80

Driver

1-10V DRIVER

PHOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

The Eclipse Round is a fixed recessed downlight with a Ø80mm bezel and features a beautifully sculpted anti-glare baffle inside a Ø32mm aperture. Unique, elegant small aperture. 360° Rotation, 26° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.

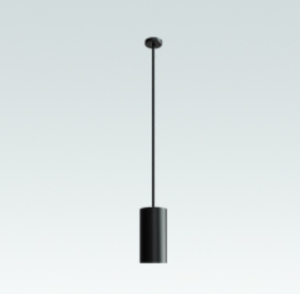

SPARK

SUSPENDED DOWNLIGHT

INDOOR LIGHTING

Suspended mount downlight luminaire body made of aluminium housing with white powder coated finish. Come with 1m hanging rod. Black finish and honeycomb accessory available upon request.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 3 powerled LEDs. The device body is made of aluminium and features a white ral 9010 finish, processed by means of coating. The ingress protection degree is IP45; the total weight is of 0.090 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be ceiling-mounted, with a 35 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
