XAL

RECESSED SPOTLIGHT

INDOOR LIGHTING

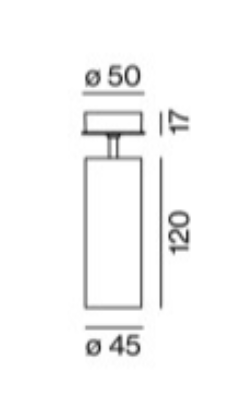

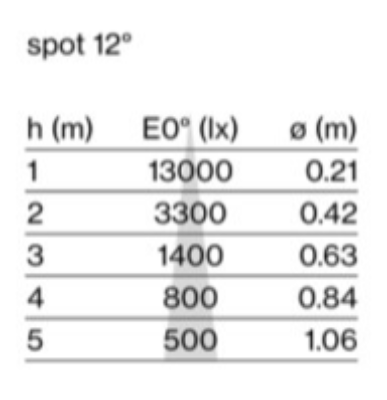

BO 45 SURFACE_049-6230418S 002-90720

Cylindrical spotlight in aluminium; surface black powder coated; 350° rotatable and 90° tiltable; with surface mounted housing; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency

Specification

Power

15W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

1140LM

Finishing

BLACK TRIM / BLACK REFLECTOR

IP Rating

IP20

Color Rendering

CRI 90

Driver

DALI DRIVER

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99913 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

BEGA

POLE LIGHT

OUTDOOR LIGHTING

Luminaire made of aluminium alloy, aluminium and stainless steel. Safety glass, antireflection-coated. Silicone gasket. Reflector made of pure anodised aluminium. Toolless closure. For pole top 76 mm. Inner diameter of the pole min.62 max.70 mm. Slip fitter insert depth 90 mm. Connecting cable X05BQ-F 4 1 Cable length 8 m LED power supply unit 220-240 V x 050-60 Hz DC 176-264 V Dimmable 1-10 V A basic isolation exists between power cable and control line. Luminaire Protection class IP 66. Dust-tight and protection against strong water jets. Safety class II 2. Impact strength IK08 Protection against mechanical impacts 5 joule, r Safety mark, c Conformity mark. Wind catching area 0.03 m.

FORMALIGHTING

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Ceiling and wall mounted spotlight with light body and driver canopy in cast aluminium. Inclusive of reflector in metalized PC. Light body is designed for passive cooling. Available in 3 different sizes. Tiltable vertically 0-90° and rotatable horizontally 360°.
