Products

LINEALIGHT

INGROUND UPLIGHT
OUTDOOR LIGHTING

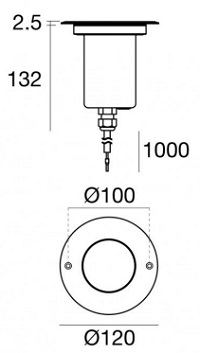

SUELO316 RX_7642W60_7W-60°
Single emission uplights for outdoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP68,IK10.

Specification

Power
7W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
572LM
Finishing
STAINLESS STEEL
IP Rating
IP68
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

CDN LIGHTING
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Dover - Surface-mounted downlight is an integrated design; built-in high efficiency LED driver with an attractive look without screw in the overall appearance, which is CDN patented. The high-quality die-casting aluminum heat sink gives an effective heat dissipation. Its narrow beam optics are suitable for accent lighting.

WE-EF
WALLWASHER
OUTDOOR LIGHTING
Marine-grade, all-aluminium construction. 5CE superior corrosion protection including PCS hardware. PMMA lens. Silicone rubber gaskets. 1.2 m of flexible PVC-free cable. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. DALI interface.
LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 12 powerled LEDs. The device body is made of uv resistant polycarbonate and features a transparent finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP67; the total weight is of 0.89 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be wall lights, ceiling or floor-mounted with an outer casing, code 98844 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
LIGMAN
INGROUND FOOT LIGHT
OUTDOOR LIGHTING

Die-cast aluminium housing and frame. Pre-treated before powder coating ensuring high corrosion resistance. Single cable entry, through wiring upon request. Stainless steel fasteners in grade 304 with zinc flake coating (ZFC). Durable silicone rubber gasket. High-efficiency glass lens. Integral control gear. Recessing box in high-density polyethylene is included. To ensure efficient drainage, gravel must be used to a depth of 450 mm and width of 300 mm beneath the housing and should also be placed around luminaire. Suitable for drive-over with a maximum load of 4,000 kg for MK-60249, MK-60259, 2,000 kg for MK-60269, 1,000 kg for MK-60729. Vehicles with pneumatic tires can drive over the luminaire but the speed must not exceed 10 km/h. Load is transferred by the housing to the foundation
