IGUZZINI

LINEAR LIGHT

INDOOR LIGHTING

IN90_Q443.01

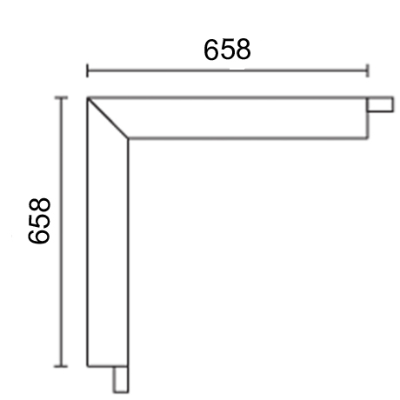

Angular element for Minimal (frameless) flush with ceiling version profiles; including a Warm LED module. Microprismatic screen for controlled luminance emission UGR < 19 - 3000 cd/m2 (working lighting); screen set up for connecting several lengths by overlapping. Built-in DALI dimmable control gear. Pass-through wiring for continuous lines.

Specification

Power

15.6W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1800LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

XAL

RECESSED DOWNLIGHT

INDOOR LIGHTING

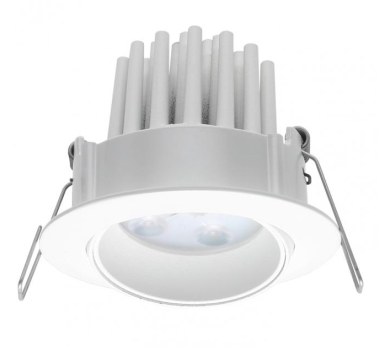

Round recessed spotlight in die-cast aluminium; surface traffic white; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 2700 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 90; min.

LINEALIGHT

INGROUND UPLIGHT

OUTDOOR LIGHTING

Single emission uplights for outdoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The luminare body is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP68.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98671 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
