IGUZZINI

RECESSED DOWNLIGHT

INDOOR LIGHTING

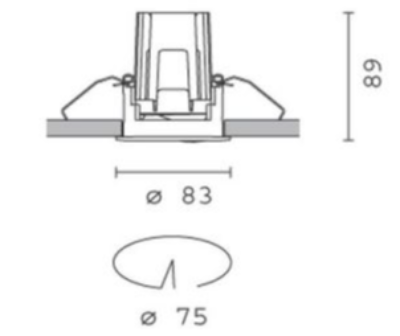

LASER R673.01

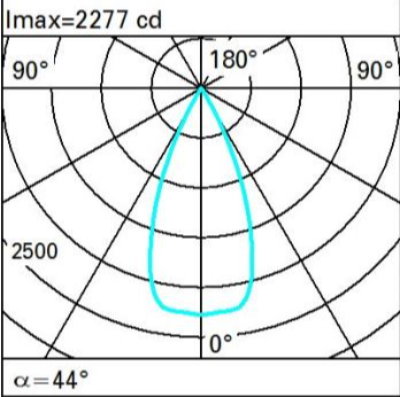

Round fixed recessed luminaire with contact frame. LED are set a long way back to minimize glare and guarantee a high level of visual comfort. The main body is made of die-cast aluminium with a radiant surface that guarantees optimum heat dissipation. Metallised, thermoplastic, high definition reflector with wide flood optic. Structure with die-cast aluminium external contact frame with a single white finish. The internal ring is made of thermoplastic available in a range of painted and metallised finishes. Safety glass included Quick and easy tool free assembly. Available in IP20 and IP44 version.

Specification

Power

10W

Color Temperature

4000K

Light Source Type

LED

Lumen Output

1120LM

Finishing

WHITE

IP Rating

IP44

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

WIBRE

UNDERWATER LIGHT

OUTDOOR LIGHTING

Protection class IP68 – up to 3m water depth. Entirely made of stainless steel 316Ti 1.4571. With 17 mm (4.0301) or 32 mm (4.0311) thick cover on the basis of a PAR56 light source. (4.0301) for concrete pools in conjunction with built-in pot 4.0300. (4.0311) for plastic or metal pools with pressure flange in conjunction with built-in pot 4.0312. Light source can be changed without draining the water. Supplied with light source and underwater cable (3 m) already connected (2 x 6 qmm)

LINEALIGHT

CEILING LIGHT

OUTDOOR LIGHTING

Single emission lines for outdoor application. The super warm white LED light source with a asymmetric wallwasher light distribution is composed of 210 topled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 1208 lm, with a 92.2 lm/W nominal luminous efficacy. The device body is made of uv resistant polycarbonate and features a transparent finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP67; the total weight is of 0.95 kg. The total absorbed power is 15 W. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be wall lights, ceiling or floor-mounted with an outer casing, code 98844(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

IGUZZINI

LINEAR LIGHT

INDOOR LIGHTING

Direct emission modular lighting system with LED lamps. Initial module for general lighting (Low Contrast); can be used independently or in a continuous line. Minimal (frameless) version extruded aluminium single length profile; methacrylate opal screen set up for connection to end caps on both sides. Installation can be recessed, surface-mounted (ceiling/wall), or pendant. The module must be completed with the accessories kit needed for the selected type of installation.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.128 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 35 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
