PHOS

ADJUSTABLE DOWNLIGHT

OUTDOOR LIGHTING

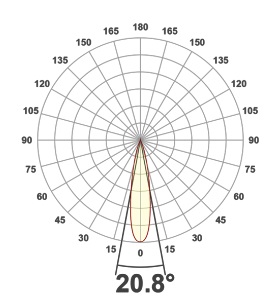

NA-EY-MTA_3000K-3W-20°

The Nano Eyeconic Mini Trim Adjustable is an incredibly discreet recessed, directional downlight with a ø38mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. Easily interchangeable optics. Flawless finishes available on all components. 26° Tilt, 360° Rotation.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

258LM

Finishing

WHITE

IP Rating

IP54

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission ceiling lights for indoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 3 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1101 lm, with a 115.9 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of PC. The ingress protection degree is IP20; the total weight is of 0.5 kg. The total absorbed power is 10.5 W. The power supply cable is included and features a 0.170 m length. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with three medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

LIGHTFORMS

SUSPENDED PENDANT LIGHT

INDOOR LIGHTING

Light Panel Up & Under is a rectilinear panel available in a number of sizes. The fixture provides good output and efficiency with a clean and simple architectural design. Choose either direct only output or both indirect and direct.

NEKO

RECESSED DOWNLIGHT

INDOOR LIGHTING

Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; measurements Ø110mm x 79mm; narrow mounting trim with a cutout of Ø100mm; ceiling thickness 1-30mm; luminaire's weight is approximately 420g; CCT 3000K with an System luminous flux of 1150lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; degree of housing protection IP54; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician
