PHOS

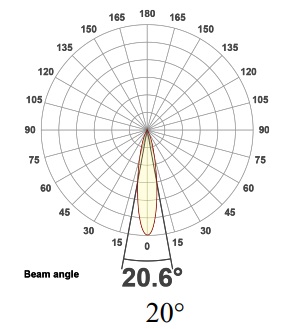

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, design element with dark screen print, for loads up to max. 2000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 2 stainless steel screws, with polypropylene recess housing, cable gland: M20 (stainless steel), connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks , with 1 m cable H07RN‑F3G1, integral potted driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 12° / 108°, luminous flux: 1059 lm, wattage: 15 W, delivered lumens 71 lm/W, protection type IP67, protection class I, impact resistance IK10, dimensions (L×H×W): 648 × 99 × 84 mm, weight 3.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

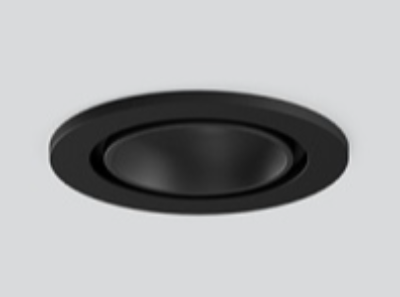

Round recessed spotlight made of die-cast aluminium and epoxy black finishing. 360° rotatable and 30° tilt able angle. Suitable for ceiling thickness of 2-25 mm. Passive cooling of the LEDs through improved heat sink geometry with COB (Chip on Board) technology for maximum efficiency. No appearance of multiple shadows. The ingress protection degree is IP20.

Flexible Neon strip Horizontal bend available CCT from 2700K, 3000K and 4000K. Able to work with dimming and non-dimming driver. Accessories have mounting

bracket, mounting rail and flexible rail.

DIMENSION : (L)1000*(W)20*(H)20mm

Traxon Kontour is an AC line powered exterior luminaire used to distinguish facades, walls, and architectural borders with a concentrated, even radiance. ProPoint Kontour’s compact, lowprofile design is available in four lengths, two widths and is combined with a clip mounting system for efficient installation.
