PHOS

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely. Reflector come with Silver, Chrome Black and White and honeycomb accessory available upon request.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 44°, luminous flux: 1460 lm, wattage: 23 W, delivered lumens 63 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,016 m², dimensions (L×H×W): 126 × 97 × 126 mm, weight 1.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Single emission downlights for indoor application. The warm white LED light source with a extra wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of PC, processed by means of coating. The ingress protection degree is IP20; the total weight is of 0.9 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.30 m length. The device features protection class III and can be ceiling-mounted, with a 122 x 122 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

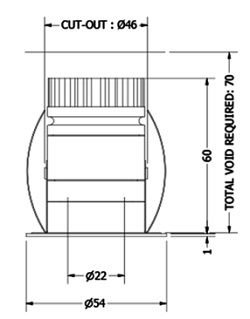

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 30 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
