BEGA

INGROUND UPLIGHT
OUTDOOR LIGHTING
77019K3

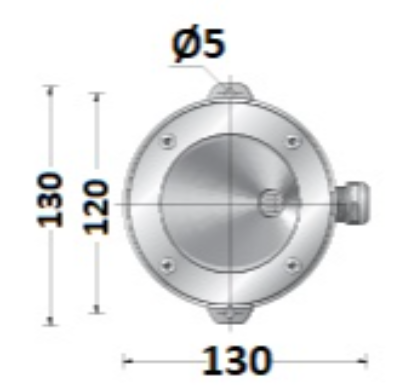

Inground uplight cover ring luminaire made of stainless steel housing and cast stainless steel. Steel grade number 1.4301. Clear safety glass, reflector made of pure anodised aluminium material. 2 mounting holes ø 5mm Distance apart 120mm, 1,8m water-resistant connecting cable 05RN8-F 3G1@ with implemented water stopper and 1.2m PVC cable conduit. BEGA Thermal Switch® Temporary thermal shutdown to protect temperature-sensitive components Safety class I Protection class IP 68 10m, IK10. DIMENSION : (W)115x(H)100x(D)130mm.

Specification

Power
4.1W
Color Temperature
3000K
Light Source Type
LED

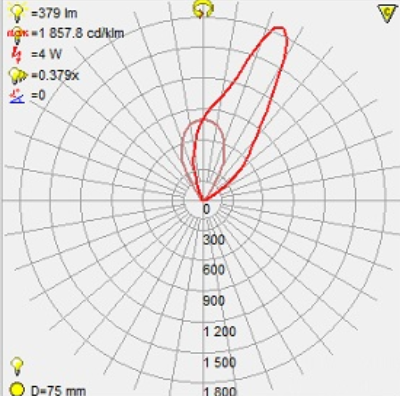

Lumen Output
379LM
Finishing
STAINLESS STEEL
IP Rating
IP68
Color Rendering
CRI80
Driver
ON/OFF DRIVER

See more

LINEALIGHT
CEILING LIGHT
INDOOR LIGHTING
Single emission ceiling lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 322 topled LEDs. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 7kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.93 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 126 x 126 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
CDN LIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING


FORMALIGHTING
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

A square or rectangular-shaped mounting trim in cast aluminum with spring for trim installation or brackets for trimless installation on a ceiling thickness 6-15mm. Luminaire body inclusive of snoot in cast aluminum. Easy relamping via removable front ring by snap-in catch action,available in a configuration of 1, 2 or 3 LED light heads, extending the trim size and shape from square to rectangular. Tiltable in two directions up to 25°.
