ECOSENSE

FLOODLIGHT

OUTDOOR LIGHTING

RISE F170 SINGLE_LO_60D

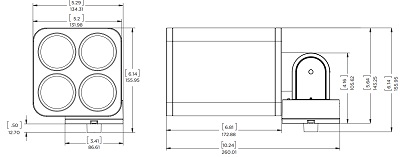

RISE is a system of beautifully designed outdoor rated luminaires that provide efficient and powerful light using the latest in LED technology. RISE F080 single is a powerful and compact LED light fixture, delivering up to 1170lumens, that can be used in spot, accent, landscape and floodlight applications. Its unique MARCO lock feature allows for full 180 degree tilt and 360 degree pan aimability using only one tool. DIMENSION : W131.9*H155.95*L260.01MM

Specification

Power

13W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

938LM

Finishing

GREY

IP Rating

IP66

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LIGHTFORMS

SURFACE MOUNTED LIGHT

INDOOR LIGHTING

A super compact cylindrical light source with a huge range of optical options. The construction is an extruded aluminium housing packaged with either optic, reflector or LED engine - but always in the classic and clean cylindrical form. Control gear is generally always integral, but this may be restricted with certain outputs, control types and additions. But we can always work this out for you.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 1.05 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.30 m length. The device features protection class III and can be ceiling-mounted, with a 121 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.535 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99914 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
