Product Detail | Bloxlimited

LED LINEAR

LINEAR LIGHT

OUTDOOR LIGHTING

NEPTUNE WHITE HIGH EFFICIENCY HD_10W

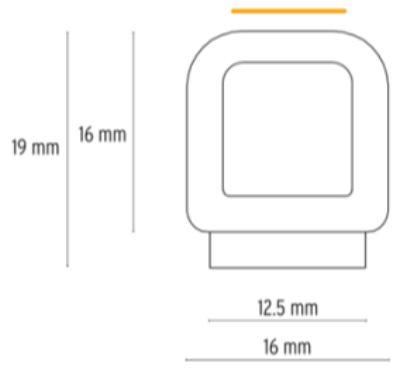

Outdoor Recessed OR Surface mount Underwater rigid linear IP68 rated fixture with opal PVC extruded body and 220° beam angle in custom lengths up to 5 m. Submersible up to 1 m. Chlorine resistant up to 5 ppm and even higher resistance during shock treatment. Homogeneous lines of light up to 5 m in single piece. DIMENSION : L1000*W16*H16MM

Specification

Power

10W/M

Color Temperature

4000K

Light Source Type

LED

Lumen Output

270LM/M

Finishing

WHITE

IP Rating

IP68

Color Rendering

CRI90

Driver

ON/OFF DRIVER

LINEALIGHT

CEILING LIGHT

OUTDOOR LIGHTING

Single emission ceiling lights for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 1.45 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

MEYER

FLOODLIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, 2 drilled holes Ø 7 mm, spacing 30 ‑ 40 mm, 1 centre hole Ø 21 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 25°, luminous flux: 2953 lm, wattage: 37 W, delivered lumens 80 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,02 m², dimensions (L×H×W): 152 × 120 × 152 mm, weight 2.4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

LUCI

LED LIGHT BAR

INDOOR LIGHTING

Powerful rectangular mono color LED light bar, seamless lighting with completely eliminated dots. Housing made of aluminium and polycarbonate material. Various length available from 103mm to 1000mm/m.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source is composed of 11 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98724(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
