SPARK

Characterized by clean and clean-cut lines CORE is a family of square wall light, ceiling light, bollard and pole lights. CORE is available in two sizes and equipped with COB LED in three color temperatures and exceptional color consistency. The computer-aided-design of the parabolic reflector provides efficient light emission and distribution. The housing is dust and water protected through the extensive engineering design and testing. CORE is recommended to illuminate column, facades, walkways and vairous architectural design works. The pole lights give a great level of downward light with symmetric or asymmetric light distributions.

Round recessed spotlight in die-cast aluminium; 1 lamp; surface gold; 360° rotatable and 30° tiltable; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim Signal white; for installation in soft acoustic ceilings; suitable for ceiling thickness of 25-40 mm; passive cooling of the LEDs through improved heat sink geometry; with COB.

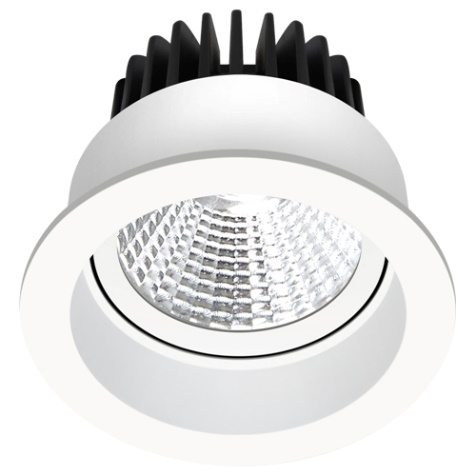

Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; 1-10V Dim Driver; System Power 21W; measurements Ø110mm x 131mm; ceiling cutout of Ø100mm with a narrow mounting trim; ceiling thickness 1-25mm; CCT 3000K with a System luminous flux of 1450lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty.

Luminaire housing made of cast aluminium BEGA Unidure® coating technology Earth spike made of glass fibre reinforced synthetic material. Colour graphite. Polymer lens
