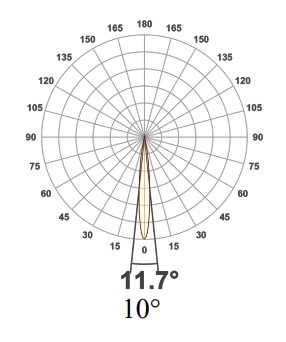

EE-MTF_3000K-9W-10°
The Eclipse Mini Trim is a recessed, fixed downlight with a Ø86mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. 360° rotation, 26° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires

Specification

Power
9W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
635LM
Finishing
WHITE
IP Rating
IP54
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

FORMALIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING
LED Built-in with body - High Power LED - Power LED. 3-step MacAdam
CDN LIGHTING
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Fixed and adjustable in one; When tilting at any angle, patented spherical shielding design helps prevent light leak and gap. Special moving gear tilt design provides stabilized torque for accurate tilt with sound and force feedback when rotating. Besides, Bach 5s series have pull ring equipped for easy maintenance and internal angle mark for accurate aiming. Professional optics, precise and round light spot.

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The RGB LED light source with a flood light distribution is composed of 3 powerled LEDs. The device body is made of brass and features a chrome finish, processed by means of electroplating. The ingress protection degree is IP44; the total weight is of 0.079 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be wall lights or ceilingmounted, with a 29 mm diameter hole (in plasterboard) with an outer casing, code 84901 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
WE-EF
SURFACE MOUNTED LIGHT
OUTDOOR LIGHTING
Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Luminaire can be mounted for up or down lighting. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering.
