"Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. Aluminium protective guard of 8 mm thickness. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process: 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 10 Maximum load capacity 2000 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

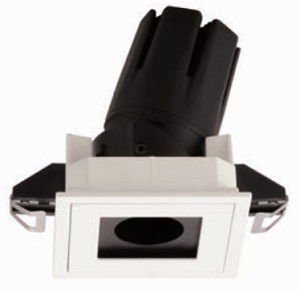

Compatible with MR16, 35 and 50 series LED modules. Colour temperature options 2700K, 3000K, 4000K, 5000K, tuneWHITE,WarmDim. Colour rendering index 85 or 95. Up to 50,000 hours L80 lamp life with. LM80 tested LED chip packages. Beam pattern options ClassicPRO 10, 20, 35, 60 .Luminous flux 310lm to 1600lm depending on LED module.Supplied with non-dimmable or phase0-10VDALI dimmable LED driver, 90mm cutout,30 tilt ATePS Automated Thermal, Protection System, ComfyEYE, reduced flicker percentage, Interchangeable LED module system, Optional IP54 seal, colour and light, effect filters and honeycomb anti-glare, louvre.

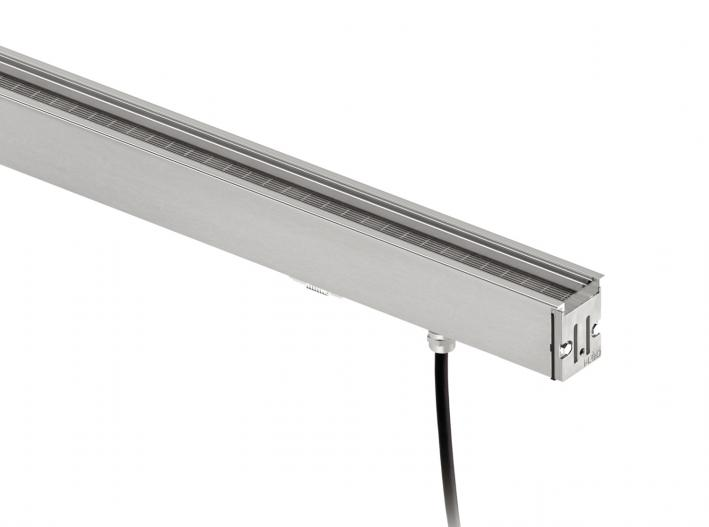

Linear XTR Direct View is a direct view LED linear fixture designed for maximum run length. Using custom internal circuitry and advanced power systems, it allows for interconnection of up to 700’ of product, and up to 1400’ on a single driver when controlled in group mode. Available in multiple color temperatures of white or color-changing, it is perfect for applications where long-distance runs are desired.
