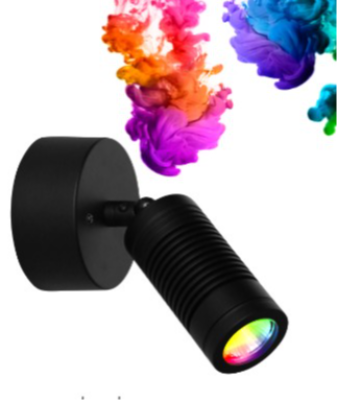

GINKO 3.0_4000K-10W-42°

Ginko 3.0 Outdoor surface mounted projector light (ceiling, wall, ground, spike), housing made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version), body made of brass, produced entirely on a CNC lathe. Bracket made of brass.  Optics available: 9°-36°° . IP66, IK09.

Specification

Power
10W
Color Temperature
4000K
Light Source Type
LED
Lumen Output
609LM
Finishing
JASPER GREEN
IP Rating
IP66
Color Rendering
CRI >90
Driver
CASAMBI

See more

SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Recessed adjustable rectangular downlight come with snoot, luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with three medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
ERCO
RECESSED DOWNLIGHT
INDOOR LIGHTING

The luminaire is made of cast aluminium, designed as heat sink, with connection cable L 500mm. Fixing springs for ceiling thicknesses of 1-40mm. 4-pole terminal block. Includes ERCO DALI control gear. LED module: high-power LEDs. Lens system made of optical polymer. Anti-glare cone with covered mounting detail: polymer, black. Optical cut-off 30°. Dimming possible via commercially available push-buttons (Push Dim). The luminaire is protected on the room side against splashing water.

XAL
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Round recessed spotlight in die-cast aluminium; 1 lamp; surface jet black; 360° rotatable and 30° tiltable; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3000 K; CRI 90.
