LINEALIGHT

Single emission projectors for outdoor application. The super warm LED light source with a narrow spot light distribution is composed of 1 powerled LEDs. Luminaire body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP66. IK05

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient faceted rotationally symmetrical reflector, lockable, tilt range: 0‑15°, lockable, 0,8 m cable H07RN‑F3G1, integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 55°, luminous flux: 838 lm, wattage: 11 W, delivered lumens 76 lm/W, protection type IP68, protection class I, impact resistance IK10, dimensions: Ø 180 mm, width 152 mm, weight 2.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks.

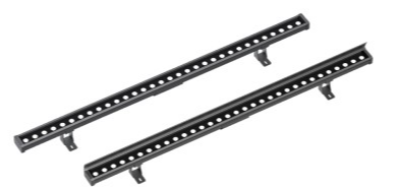

Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.535 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99763 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
