IGUZZINI

SPOTLIGHT

OUTDOOR LIGHTING

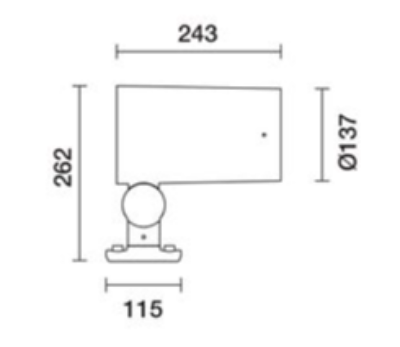

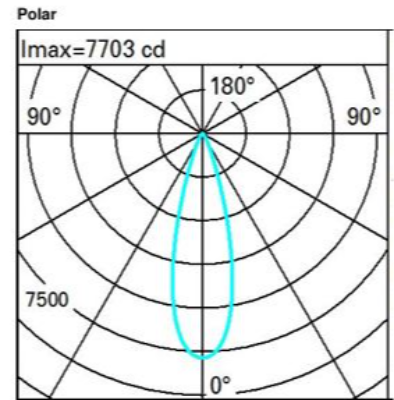

PALCO INOUT_S846

Outdoor Floodlight with LED lamp fitted with a Flood optic. Consisting of an optical assembly made of EN1706AC 46100LF aluminium alloy and a forged steel flange for installation on cylindrical-conical poles. The optical assembly is subjected to a multi-step, pre-treatment process in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). All external screws are made of A2 stainless steel. IP65

Specification

Power

20.4W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2094LM

Finishing

GREY

IP Rating

IP65

Color Rendering

CRI 90

Driver

DALI DRIVER

FLOS

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed luminaire with LED light source. Power supply not included. Installation frame not required.

WE-EF

SPOTLIGHT

OUTDOOR LIGHTING

IP66. IK07. Marine-grade, all aluminium construction. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Two cable entries. Mains voltage versions, ON-OFF Class I. Integral EC electronic converter. 24VDC low voltage versions, ON-OFF Class III. DALI (only 4W available) Class I. Knuckle permits 340° rotation, forward tilt 73° and backward tilt 90°. Remote 24VDC power supply to be ordered separately.Optical accessories are factory-installed. To be specified at time of ordering.

IGUZZINI

SPOTLIGHT

INDOOR LIGHTING

Adjustable spotlight with adapter for installation on DALI track for high output LED lamp with monochrome emission in a warm White (3,000K) tone. DALI ballast integrated in the product. Luminaire made of die-cast aluminium and thermoplastic material, allows 360° rotation about the vertical axis and 90° tilting relative to the horizontal plane. The luminaire has mechanical aiming locks for both movements, operated using the same tool on two screws, one at the side of the rod and one on the adapter for the track. Passive heat dissipation. Reflector in superpure mirrored aluminium with special faceting that improves the distribution of the light beam (OPTIBEAM). Spotlight can hold up to two flat accessories at the same time. Another external component can also be applied, selected from directional flaps and an anti-glare screen. All external accessories rotate 360° about the spotlight longitudinal axis. IP20, Size (mm): ø142x293.

DALITEK

CONTROL SYSTEM

6 channels 10A/CH switch output, 6 channels 0-10V control signal. Switch relays and 0-10V channels can be controlled separately. 220V ± 10% 50Hz Single phase 0.1A. Phase-independent. Control input: 1 × RS485 network serial port input; 1 × AUX dry contact input. Internal control: Build in programmable logic controller. Network DC power: 90mA DC12V. Presets scenes: 96 (no loss of information due to power failure. DIN rail installation
