Product Detail | Bloxlimited

MEYER

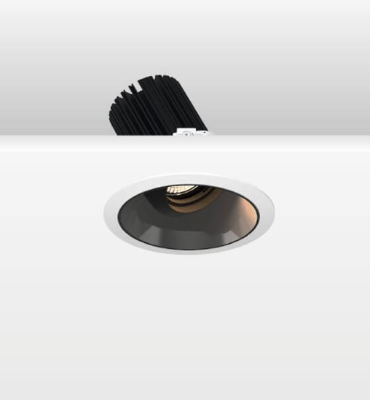

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

8 314 146 059

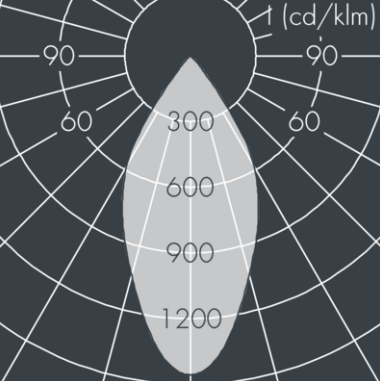

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, luminaire fixed using stainless steel spring loaded clamps, clamping range in hollow ceilings 12‑42 mm, aperture for installation Ø 125 mm, connecting terminal: 3 pole, highly efficient faceted and coated rotationally symmetrical reflector, 1 m cable, remote driver required, CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 50°, luminous flux: 1863 lm, wattage: 19 W, delivered lumens 97 lm/W, protection type IP65, protection class III, impact resistance IK08, dimensions: Ø 140 mm, width 95 mm, weight 1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power

19W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1863LM

Finishing

DIE-CAST ALUMINUM

IP Rating

IP65

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

LUCE & LIGHT

UNDERWATER LIGHT

OUTDOOR LIGHTING

recessed for underwater applications (suitable for use in seawater); walkover; recessed (wall, ground), max depth 10 m; Power consumption: 7W; Power supply: 24Vdc; Lumen output at source: 683 lm (3000K, 7W); Delivered lumen output: 463 lm (3000K, 34°, 7W); 1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 4000K; Optics: 13°x52°: optical system consisting of a high-efficiency TIR lens combined with a high-quality technical filter; CRI Colour Rendering Index: 80

SPARK

SUSPENDED DOWNLIGHT

INDOOR LIGHTING

Suspended mount downlight luminaire body made of aluminium housing with black powder coated finish. Come with 1m hanging rod. Black finish and honeycomb accessory available upon request.It come with different types of bean angles. Two fitting heights 300 and 400mm.

LINEALIGHT

PENDANT

INDOOR LIGHTING

Single emission pendant luminaires for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of iron and features a embossed black ral 9005 finish, processed by means of powder coating The device body is made of aluminium 6060 and features a 5g 9005 black finish, processed by means of powder coating; the diffuser is made of extra clear glass. The ingress protection degree is IP40; the total weight is of 1.2 kg. The power supply cable is included and features a 1,8 m length. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a extra wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of PC, processed by means of coating. The ingress protection degree is IP20; the total weight is of 0.9 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.30 m length. The device features protection class III and can be ceiling-mounted, with a 122 x 122 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
