ILIGHT

Surface luminaire housing from extruded aluminium profile, angular design, no visible screws, surface powder coated in white, grey or black. Luminaire profile with pre-assembled converter unit can be pre-mounted. light inset can be installed without tools. light inset made from extruded profile for improved thermal management. (reflector version). HPO (High Performance Opal) cover uniform illumination. or micro prismatic PMMAdiffuser include diffuser film for homogeneous illumination and reduced luminance. or with specially computedasymmetrical lens for homogeneous vertical lighti9ng intensity or high quality. chromed reflector with faceted design.IP20.

Electronic control gear in separate gear box (constant current), prewired

unable White. IP69, Class I. IK08. Marine-grade all aluminium construction. Anodized aluminium extrusion. PCS hardware. Silicone rubber gasket. Safety glass lens. Luminaire can be driven over at low speed, without accelerating or turning, by vehicles with air-filled tyres, at a weight up to 5 tonnes per wheel. Max. static load, 3 tonnes (according to DIN EN 60598-2-13). Factory-sealed termination chamber complete with cable gland and 0.5 m of flexible cable. PMMA LED lens. Factory installed LED circuit board with Tunable White Technology. LED boards can be easily removed for upgrading. Luminaire is factory sealed and does not need to be opened during installation. Integral electronic converter with DALI interface in thermally-separated compartment. Optional Tunable White 2200 - 6000 K version available. To be specified at time of ordering. Pre-installation blockout is recommended for mounting, available on request.

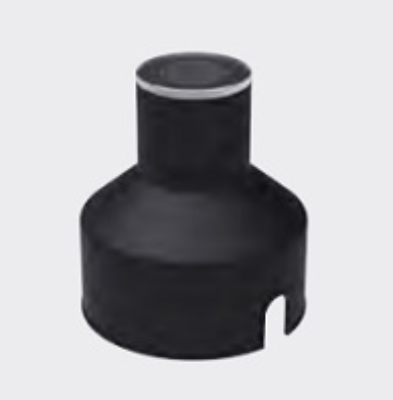

ATOM is a ground recess indicator light and is also suitable for under water light application. ATOM has been designed and manufactured at highest attribute. Utilizing CNC lathed stainless steel body presented exceptional aesthetic as well as sleek tough feeling. LED chips and lenses are from world renowned manufacturers. GFR polymer recess kit allows it to be installed in most extreme environment. Ensuring integrity of manufacture ATOM is supplied with a factory fitted pre-wide cable for ease of installation. The Anti-Humidity kit eliminate condensation inside the housing and prolong the life time of the luminaire. An optional IP68 connectors is recommended as an accessory for trouble free installation.
