TRAXON

LED DOT

OUTDOOR LIGHTING

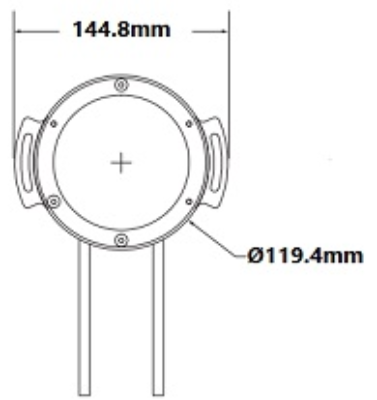

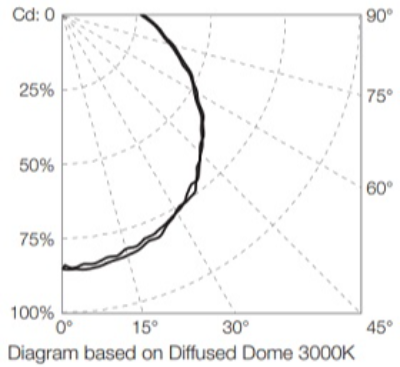

PROPOINT FIXEL WHITE+COLOR DIFFUSED DOME

The PROPOINT Pixel White + Color Diffused Dome is an AC Line powered, high brightness, exterior luminaire. The luminaire is controllable via DMX512, and is connected using a daisy chain topology, allowing easy installation to form long run lengths. Remote Device Management (RDM) circuits are built into each luminaire which enables extensive control and monitoring of the entire installation.

Specification

Power

20W

Color Temperature

4000K

Light Source Type

LED

Lumen Output

800LM

Finishing

BLACK

IP Rating

IP67

Color Rendering

CRI 90

Driver

DMX 512

LUCI

LED STRIP

INDOOR LIGHTING

2 types of LED pitch (7.1 or 17.8mm) for profile and cove lighting

The 5 wattage options, ranging from 2 to 15W/m, utilize the same LED package to ensure consistent CCT

High efficient LED package achieving up to 185 lm/W

WE-EF

SURFACE MOUNTED LIGHT

OUTDOOR LIGHTING

Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Luminaire can be mounted for up or down lighting. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering.

DELTALIGHT

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Dot.com come with Small version only needs 25mm of width, a nearly invisible appearance yet with visible impact. The Medium range includes an adjustable version - with tilting possibility of 30° - ideal for instance to emphasize an artwork on the wall. With an output up to 12W per luminaire, the Large range is the most powerful within the Dot.Com series. It comes in both recessed and surface mounted solutions. The luminaire is not only limited to spotlight beam angles, it also has linear wallwashers in its range for a soft, even light effect on vertical surfaces. These come as single luminaires, as modules to fit in the magnetic profiles and as a bespoke trimless profile solution, perfect to adapt the light to your specific desires.
