ENDO

Office linear light system offering high efficiency 142Lm/w, microprismatic lens technology keeps glare to a min UGR<19, ensuring a comfortable visual experience. The lights feature DALI 2.0 DT8 for easy dimming and CCT tunable from 2700K - 6500K. The fixture connect seamlessly for a uniform lighting effect and the prewired trunking rail with 11 cables simplifies installation and maintenance.

Optics available 45°, 50° and 60°.

Wall grazing light for organic design

Lower bendable rail and improved glare cut shield

Individual louver can be added for glare cut from the side view

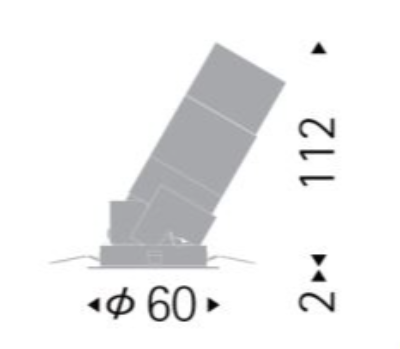

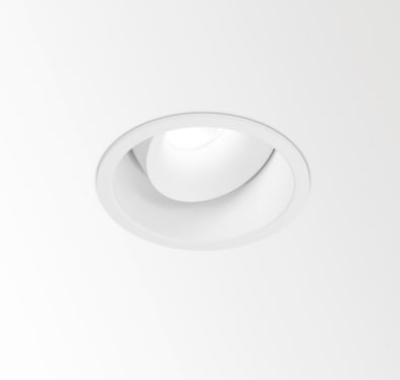

Recessed round downlight compatible with 35 and 50 series LED modules. Various color temperature from 2700K to 5000K, TuneWHITE and Warm Dim etc. Up to 50,000 hours L80 lamp life with LM80 tested. LED chip packages. Beam pattern options 10, 20, 35, 60. Lumen from 310lm to 1600lm depending on LED module. 77mm cutout, Pinhole aperture 24mm. ATePS Automated Thermal Protection System. ComfyEYE, reduced flicker percentage. Interchangeable LED module system. Optional linear spread lens, IP54 seal, colour, light effect filters and honeycomb anti-glare louvre.

Single emission projectors for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of aisi 316 steel and features a steel finish, processed by means of electropolishing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68.IK10.
