Product Detail | Bloxlimited

LIGHTFORMS

WALL LIGHT

INDOOR LIGHTING

LF156821

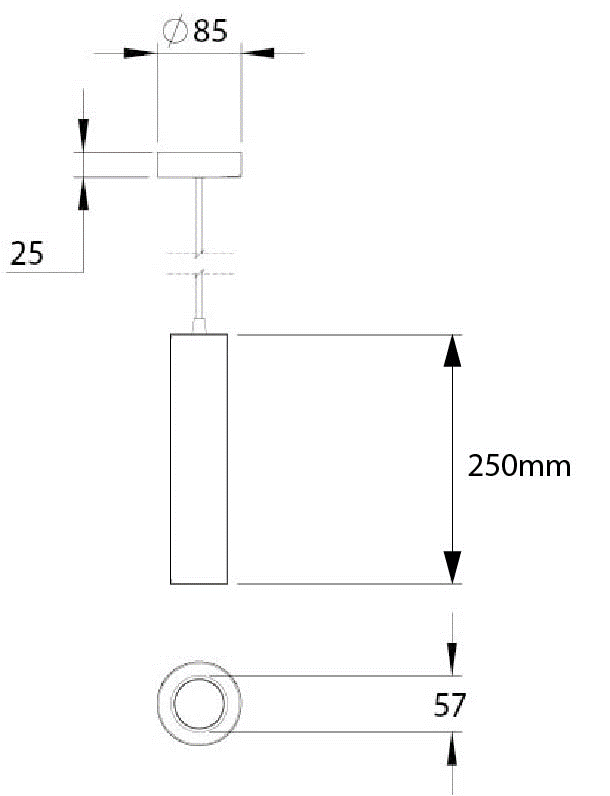

Draco is the tallest member of our cylinder lighting family. Its strong long form utilises LEDil reflectors and Osram chips (with 1 and 2 Macadam's Ellipses colour consistency). Draco is available is in a full range colour temperatures and with integral control gear as standard.

Specification

Power

13.6W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1450LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

WIBRE

UNDERWATER LIGHT

OUTDOOR LIGHTING

Protection class IP68 – for a water depth of up to 3 m. Protection class IP69 - protection against high pressure and high jet water temperatures. Entirely made of stainless steel 316Ti. Mounting foot adjustable through 180° or 90°. POW-LED cold white, warm white, neutral white, 230 V. Cable gland PG13,5, marine grade 316Ti stainless steel. Temperature-resistant silicon seal. Toughened safety glass. Supplied with light source and 3 m of underwater cable

LUCENT

ADJUSTABLE DOWNLIGHT

OUTDOOR LIGHTING

Ø65mm (2,26”) aperture, fully adjustable downlight with Oculus mechanism. 30° adjustment in all directions. Available with standard trim kit or with 3 kits for flush appearance, depending on the ceiling type and finish.

ELR

RECESSED SPOTLIGHT

INDOOR LIGHTING

An alternative form of ceiling mounted adjustable luminaires available in different sizes and output. Incorporating ELR’s signature modular concept design, LED modules are fully interchangeable with choices to flexibly illuminate designated areas and objects ideally for accent lighting applications.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 powerled LEDs. The device body is made of brass and features a chrome finish, processed by means of electroplating. The ingress protection degree is IP44; the total weight is of 0.06 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be wall lights or ceilingmounted, with a 29 mm diameter hole (in plasterboard) with an outer casing, code 84915(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
