Product Detail | Bloxlimited

FORMALIGHTING

RECESSED DOWNLIGHT

INDOOR LIGHTING

M570BC33_903012DC10

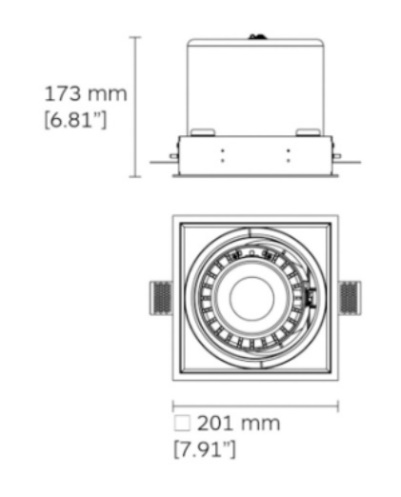

Square recessed motorized luminaire with retractable light head. Mounting trim and light head are made of cast aluminium, recessed light housing made of painted metal. Moto-Palla In&Out is available in 3 different light head diameters: 66mm, 100mm and 130mm. The luminaire includes brackets for trim installation on ceiling thickness max. 25 mm or trimless installation on ceiling thickness max. 30 mm. Two remote controlled DC motors drive the movements of the fixtures. The fixtures are rotatable horizontally 350° and, tiltable vertically in two directions (0°-10° In, 0°-90° Out). The movements of the fixture, as well as the intensity and the colour tuning of the light, are controlled via CASAMBI™ application.

Specification

Power

36W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

3002.97LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

CASAMBI

DALITEK

CONTROL SYSTEM

INDOOR LIGHTING

HDR-20 is one economical unit slim 30W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is design 35mm (2SU) in width, which allows space saving inside the cabinets. The entire adopts the full range AC input 85VAC to 264VAC (277 VAC operational) and conforms to EN61000-3-2, the form the European Union regulate for harmonic current. HDR-30 is designed with plastics housing that it can effectively prevent user from electric hazards.

SPARK

SURFACE MOUNTED LIGHT

INDOOR LIGHTING

Surface mount spotlight made of aluminium housing, integrated non-dim driver on the surface base and honeycomb inside lamp body. Diameter Ø40.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98725 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
