M570BL23_90FS28DC10

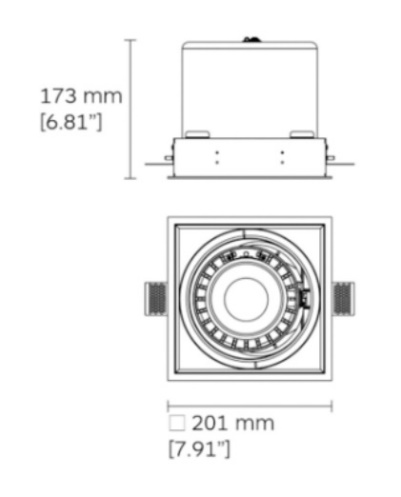

Square recessed motorized luminaire with retractable light head. Mounting trim and light head are made of cast aluminium, recessed light housing made of painted metal. Moto-Palla In&Out is available in 3 different light head diameters: 66mm, 100mm and 130mm. The luminaire includes brackets for trim installation on ceiling thickness max. 25 mm or trimless installation on ceiling thickness max. 30 mm. Two remote controlled DC motors drive the movements of the fixtures. The fixtures are rotatable horizontally 350° and, tiltable vertically in two directions (0°-10° In, 0°-90° Out). The movements of the fixture, as well as the intensity and the colour tuning of the light, are controlled via CASAMBI™ application.

Specification

Power
30.5W
Color Temperature
FULL SPECTRUM SUNLIGHT
Light Source Type
LED

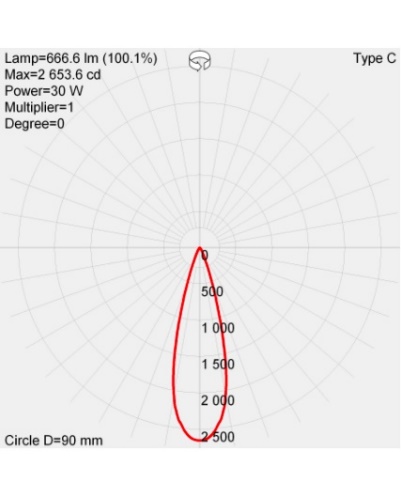

Lumen Output
710.98LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 90
Driver
CASAMBI

See more

SPARK
WALL LIGHT
OUTDOOR LIGHTING

Outdoor Surface mount wall light made of die-cast aluminium housing and in powder coated black finish. Silicon rubber gasket and external driver. Suitable for backyard, balcony, garden and outdoor wall application.

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 0.375 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 76 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
FLOS
RECESSED DOWNLIGHT
INDOOR LIGHTING
LED lighting module, with low glare, to be inserted in the recessed frames (not included), installation through a bayonet system with interchangeable spots. Available in one-light versions and groups of two and four lights. Driver not included, the driver has to be directly connected to the embedding frames.
RCL
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

DRX7 LED (25W/50W for light source) recessed luminaire available in narrow, medium and wide beam angles as well as variable beam offerings. Color temperatures offered include 2700K, 3000K and 4000K. . Movement and Dimming is controlled using a handheld remote. Other protocols available include DALI, DMX, 1-10V and RCL Control iPad app. Recording and recall of luminaire position (pan and tilt) with handheld remote controller as standard.
