Product Detail
Home Products Detail

Products

SIMES

FOOT LIGHT
OUTDOOR LIGHTING
S.3312H.19

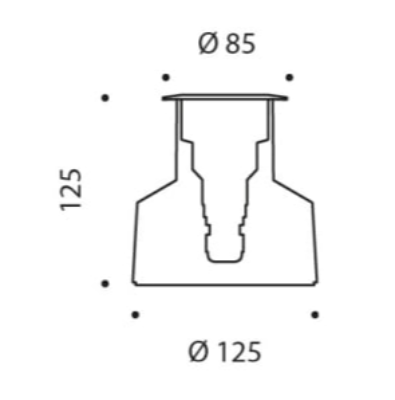

Inground walk over fitting. Recessing depth 125 mm. IP rating IP67. Body made of AISI 316L monoblock stainless steel. Absence of screws (the luminaire is fixed to the recessing box with OR rings). Recessing box in polypropylene. Mechanical resistance of diffusor IK 08 Maximum load capacity 500 Kg. Luminaire hard wired with H05RN-F neoprene cable 5m with cable gland. Isolation: CLASS III . Available colours: Stainless steel (cod.19). Weight: 1.1678 Kg Glow Wire test: 750°C.

Specification

Power
3.1W
Color Temperature
2700K
Light Source Type
Lumen Output
171lm
Finishing
Stainless Steel
IP Rating
IP67
Color Rendering
CRI 90
Driver
DIMMABLE DRIVER

See more

LINEALIGHT
PENDANT
INDOOR LIGHTING
Single emission pendant luminaires for indoor application.The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of iron and features a embossed black ral 9005 finish, processed by means of powder coating The device body is made of aluminium 6060 and features a 5g 9005 black finish, processed by means of powder coating; the diffuser is made of extra clear glass. The ingress protection degree is IP40; the total weight is of 1.2 kg. The power supply cable is included and features a 1,8 m length. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
XAL
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING

Rectangular luminaire housing with rounded edges in aluminium; extremely flat design (only 15mm); modern shape in elegant design for discerning requirements; surface black powder coated; suspended luminaire with 1500mm cable suspension; with integrated tool-less suspension height adjustment; incl. transparent feed; direct light distribution through LGP body (Light Guiding Prism); side coupled light directed downwards by laser engraving; light control via highly reflective reflector material.

LINEALIGHT
UP/DOWN WALL LIGHT
OUTDOOR LIGHTING
Double emission wall lights for outdoor application. The warm white LED light source with a double medium flood light distribution is composed of 2 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65, IK08.
IGUZZINI
INGROUND LINEAR LIGHT
OUTDOOR LIGHTING

Direct light luminaire, designed to use monochrome LED lamps, DALI 220÷240Vac dimmable with searching and addressing function and non-slip glass cover. Ground-, wall- and ceiling-recessed. Option of installation in continuous lines of up to a max length of 10.5m only for ground-recessed installation. Made up of a body, end caps, an outer casing and caps to be ordered separately. Extruded aluminium body, with die-cast aluminium end caps complete with silicone seals. Size (mm): 340x87x104
