LINEALIGHT

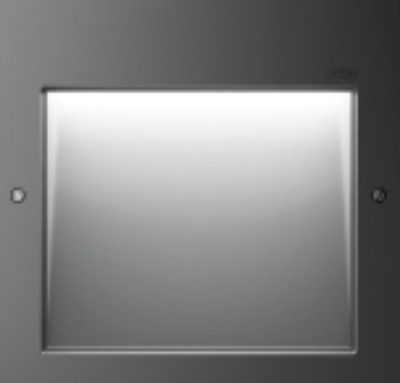

Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Tricoat® coating technology Colour graphite or silver Safety glass with optical structure Required recessed opening 175 x 175mm Recessed depth 105mm Fixing is achieved by using two adjustable wedge-shaped claws.2 cable entries for through-wiring of mains supply cable ø 7-10.5mm, max. 5G1.5@ Connecting terminal and earth conductor terminal 2.5@ Complies with flicker requirements in accordance with IEEE 1789, DIN IEC/TR 63158, D

Luminaire housing made of extruded aluminium profile; light tight final end caps made of aluminium; no visible screws; angular design; surface jet black powder coated; suspended luminaire with 1500mm cable suspension; with integrated toolless suspension height adjustment on the luminaire; spring clip attachment to the luminaire; freely positionable; incl. feed (black); lighting profile (end cover pre-assembled) available in advance for installation, microprismatic PMMA diffuser.

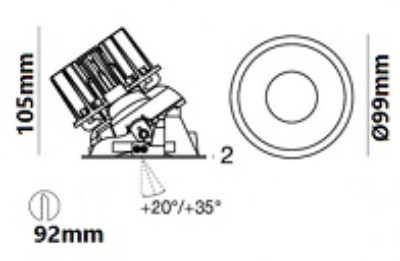

Round recessed luminaire with contact frame. Adjustable version that rotates internally by 355° and tilts by a maximum of 30°. The swivel unit rotates in a set back position in relation to the surface of the ceiling in order to guarantee precise, comfortable light diffusion and reduce direct glare significantly. The swivel unit body is made of die-cast aluminium with a radiant surface that guarantees optimum heat dissipation.
