XAL

SURFACE LINEAR LIGHT
INDOOR LIGHTING
MINO 60 HIGH LUMEN_046-4133D38Z

Luminaire housing made of extruded aluminium profile; light-tight end caps in aluminium; angular design; surface jet black powder coated; luminaire, ball proof version to DIN 18032-3 and DIN 57710 part 13 / VDE 0710 part 13; not suitable for indoor tennis centers (or halls with comparable ball sizes); LED light inset consisting of highly reflective lacquered aluminium for improved thermal management

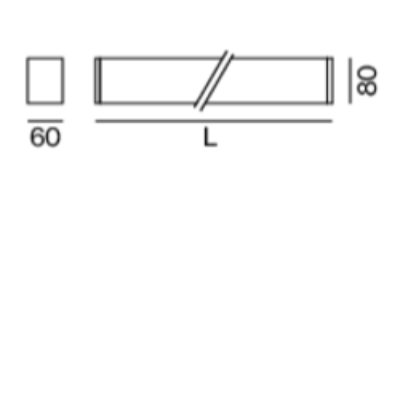

DIMENSION : L1000*W60*H80MM

Specification

Power
22W/M
Color Temperature
TW 2700K-6500K
Light Source Type
LED
Lumen Output
2250LM/M
Finishing
BLACK COLOR
IP Rating
IP20
Color Rendering
CRI 80
Driver
DALI DRIVER

See more

SIMES
INGROUND UPLIGHT
OUTDOOR LIGHTING
"Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process: 3 Step Process: 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 09 Maximum load capacity 1000 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
LUCI
LINEAR LIGHT
INDOOR LIGHTING
Square-shaped homogeneous linear light with a height of 7.4mm onlyHighly versatile and blends in various applications. 60 different length variations from 33mm up to 1508mm. Evenly illuminates with less dark spots The flat cover diffuses light evenly, resulting in soft illumination.
PHOS
RECESSED DOWNLIGHT
OUTDOOR LIGHTING
The Zep1 Darklight is a recessed, fixed downlight with a Ø95mm bezel and features a deep-set optic behind a prismatic glass lens. Reduced glare design with black baffle, frosted glass lens and deep optic.
PROLICHT
PENDANT
INDOOR LIGHTING

The pendant luminaire SIGN from the familiy SIGN consists of aluminum-extruded profile. The article can be powder coated in 25 colours. The ballast is integrated and allows for an operation with 220-240V (50/60Hz). SIGN (# 410-1492) is dimmable via BUS. The luminaire with direct illumination and corresponds to protection class SK1 at IP20.
