UNILAMP

UNDERWATER LIGHT

OUTDOOR LIGHTING

ATOM 7480-5-2-989-91

ATOM is a ground recess indicator light and is also suitable for under water light application. ATOM has been designed and manufactured at highest attribute. Utilizing CNC lathed stainless steel body presented exceptional aesthetic as well as sleek tough feeling. LED chips and lenses are from world renowned manufacturers. GFR polymer recess kit allows it to be installed in most extreme environment. Ensuring integrity of manufacture ATOM is supplied with a factory fitted pre-wide cable for ease of installation. The Anti-Humidity kit eliminate condensation inside the housing and prolong the life time of the luminaire. An optional IP68 connectors is recommended as an accessory for trouble free installation.

Specification

Power

5.6W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

270LM

Finishing

STAINLESS STEEL

IP Rating

IP68

Color Rendering

CRI >80

Driver

ON/OFF, 1-10V, DALI

LINEALIGHT

RECESSED LINEAR LIGHT

INDOOR LIGHTING

Single emission lines for indoor application. The warm white LED light source with a general lighting light distribution is composed of 54 topled LEDs with CCT of 3000 K and a CRI 80 the source luminous flux is 2020 lm, with a 134.7 lmW nominal luminous efficacy. The device body is made of aluminium and features a aluminium finish, processed by means of anodisation the diffuser is made of PC. The ingress protection degree is IP40 the total weight is of 2.15 kg. The power supply driver is included in the delivery. The total absorbed power is 15 W. The device features protection class I and can be wall lights or ceilingmounted, with a 43 x 1005 mm hole in plasterboard.

SPARK

LINEAR DOWNLIGHT

INDOOR LIGHTING

Recessed slim linear light made of die cast aluminium housing. Various of color temperature from 2700K to 4000K and beam angle from 15° to 60°. Suitable for Indoor application retail shop and office space.

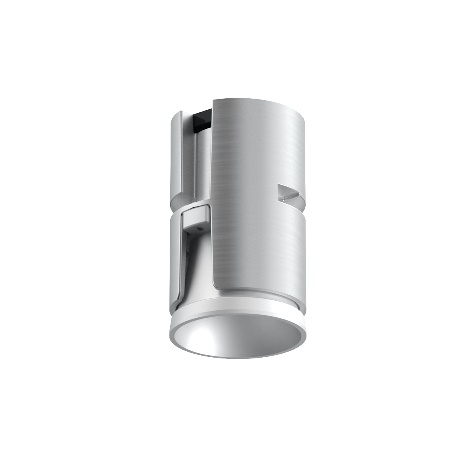

XAL

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Cylindrical semi-recessed spotlight made of aluminium; surface black/gold (housing/light inset); 360° rotatable and 30° tiltable; luminaire housing can be attached to mounting plate without tools by interlock; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows
