TRAXON

LINEAR LIGHT

OUTDOOR LIGHTING

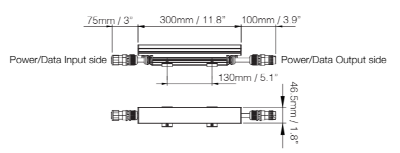

ProPoint Kontour 120

Traxon Kontour is an AC line powered exterior luminaire used to distinguish facades, walls, and architectural borders with a concentrated, even radiance. ProPoint Kontour’s compact, lowprofile design is available in four lengths, two widths and is combined with a clip mounting system for efficient installation.

Specification

Power

4W/300MM

Color Temperature

3000K

Light Source Type

LED

Lumen Output

362LM/300MM

Finishing

ALUMINUM

IP Rating

IP66

Color Rendering

CRI>80

Driver

SPARK

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Surface mounted downlight, luminaire body made of aluminium housing with white powder coated finish. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.

PUK

DISPLAY LIGHT

OUTDOOR LIGHTING

Diam. 45 mm micro-projector for external use, ideal to light bushes, flowerbed and gardens in general. Body made in turned and anodized aluminum. In horizontal axis it can be oriented up to 30° down and up to 90° up. Remote 24V DC driver needed, with 1 x CREE “XPG2” LED. IP66 rating.

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission ceiling lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 336 topled LEDs. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 7.4 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 1432 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
