LUCE & LIGHT

INGROUND UPLIGHT

OUTDOOR LIGHTING

CW10125MAI-2

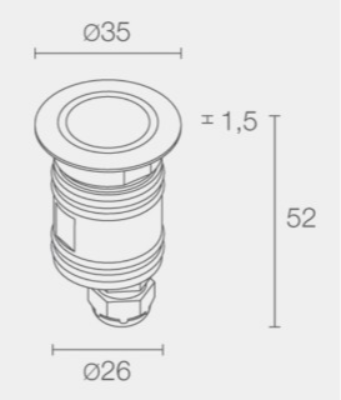

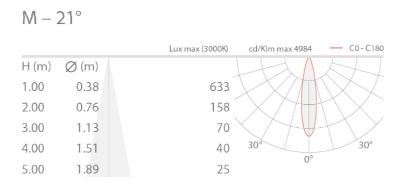

Bright 1.0 316L code: CW10125MAI-2 recessed for outdoor and underwater applications; walkover up to 500 kg; recessed (wall, ground), max depth 10 m; Power consumption: max 2W; Power supply: max 500mA; Lumen output at source: 195 lm (3000K, 500mA); Delivered lumen output: 127 lm (3000K, 500mA, 21°); 1 power LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C); LED colour: 3000K; Optics: 21°: optical system consisting of a high-efficiency TIR lens; CRI Colour Rendering Index: 80.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

127LM

Finishing

STAINLESS STEEL

IP Rating

IP65

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

FORMALIGHTING

SURFACE MOUNTED LIGHT

OUTDOOR LIGHTING

Surface mounted modular system in die cast aluminium. Available in different length configurations based on a 83mm link (2 LED per link) with a 76mm increment. Section 34x36.6mm. Its flexible structure maintain a constant 38mm pitch between the LED.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 0.120 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 6.5 W. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 48 mm diameter hole (in plasterboard) with an outer casing, code 89374(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LUCI

LED STRIP

OUTDOOR LIGHTING

Top bend dot-free flexible light, cuttable every 50mm at site Updated with low wattage high lumen LED series Available 4 different wattage variations Indoor usage only, custom length max.5m per roll, connectable 10m per circuit
