TRAXON

WALLWASHER

OUTDOOR LIGHTING

WA.GC.113111000

The Traxon Washer Go Cube is a DC line powered exterior luminaire used to distinguish facades, walls, and architectural landmarks with a even colour wash effect. Washer Go Cube compact design features efficient electrical and optical system, making it ideal for budget-conscious projects.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

153LM

Finishing

GRAY

IP Rating

IP66

Color Rendering

CRI>80

Driver

MEYER

SPOTLIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, mounting bracket powder coated aluminum with tilt scale: 2 drilled holes Ø 7 mm, spacing 40 ‑ 60 mm, 1 centre hole Ø 21 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), 80, Beam angle (fwhm): 14°, luminous flux: 1544 lm, wattage: 55 W, delivered lumens 28 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,076 m², dimensions: Ø 215 mm, width 390 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

ENDO

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

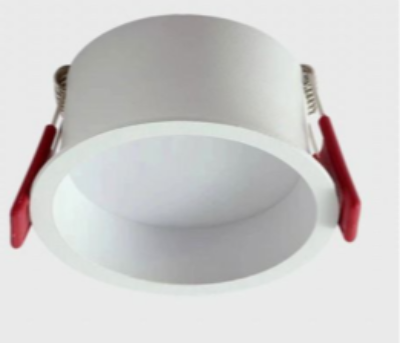

Recessed fixed downlight in matt white aluminium frame and mirror finish reflector. Cut-out 125mm. IP20

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.859 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 125 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
