BEGA

WALL LIGHT

OUTDOOR LIGHTING

31 099

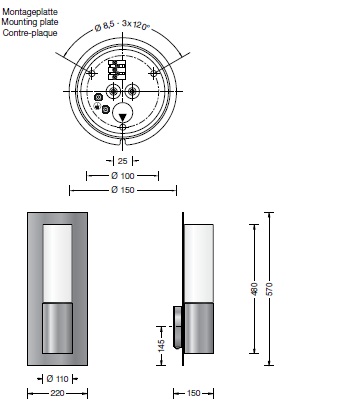

Luminaire made of copper and stainless steel, Opal glass with screw neck. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 3 fixing holes ø 8.5 mm. Angle 120° · Pitch circle ø 100 mm, 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@ Plug connection. Connecting terminal 2.5@ Earth conductor connection LED power supply unit 220-240 V x 0/50-60 Hz, DC 176-264 V, DC Start ≥ 198 V, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water, Impact strength IK03. Protection against mechanical impacts < 0.35 joule, r – Safety mark, c – Conformity mark.

Specification

Power

LED 10.2W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

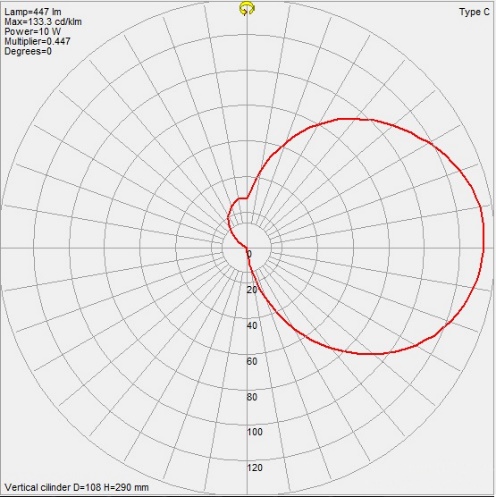

447 lm

Finishing

Eco Classic

IP Rating

IP44

Color Rendering

CRI> 80

Driver

ON/OFF, 1-10V, DALI

FAGERHULT

LINEAR LIGHT

INDOOR LIGHTING

Connection

The luminaire is equipped with an access hole for cabling on the top. Knock-out at start luminaires short end for surface mounted mains cable. The luminaire unit is equipped with a through-wiring cable (5x2.5 mm²) and a snap-in connection in each end-cap.

Design

Luminaire body in natural anodised extruded aluminium finish.

LINEALIGHT

INGROUND UPLIGHT

OUTDOOR LIGHTING

Single emission submerged for outdoor application. The natural white LED light source with a extra wide flood light distribution is composed of 1 powerled LEDs. The luminaire body is made of stainless steel and features a steel finish, processed by means of shot peening. The ingress protection degree is IP68, IK10.

SPARK

SUSPENDED DOWNLIGHT

INDOOR LIGHTING

Suspended mount downlight luminaire body made of aluminium housing with black powder coated finish. Come with 1m hanging rod. Black finish and honeycomb accessory available upon request.It come with different types of bean angles. Two fitting heights 300 and 400mm.

SPARK

SURFACE MAGNETIC TRACK SPOT

INDOOR LIGHTING

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely. Reflector come with Silver, Chrome Black and White and honeycomb accessory available upon request.
