IGUZZINI

RECESSED LINEAR LIGHT
OUTDOOR LIGHTING

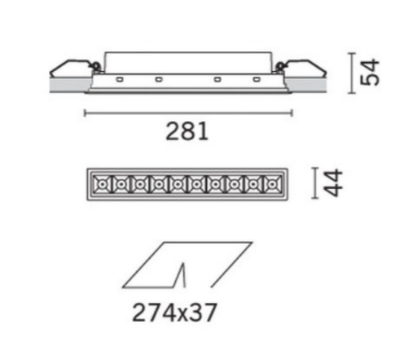

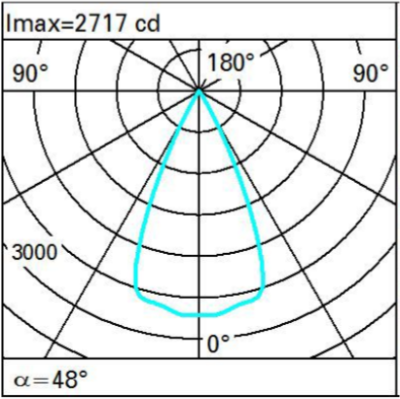

MQ83

rectangular miniaturised recessed luminaire with 10 optical elements with LED lamps - fixed optics - wide flood beam angle. Main body with die-cast aluminium radiant surface, version with perimeter surface frame. Metallised thermoplastic high definition optics, integrated in a rear position in the black anti-glare screen; the structure of the optical system prevents a pinpoint effect, allowing precise, circular light distribution and emission with controlled glare .

Specification

Power
24.5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1534LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 95
Driver
ON/OFF DRIVER

See more

IGUZZINI
RECESSED DOWNLIGHT
INDOOR LIGHTING
Round recessed luminaire with contact frame. Super Comfort fixed version: the LEDs are set a long way back to minimize glare and guarantee a high level of visual comfort. The main die-cast aluminium body includes a radiant surface that guarantees optimal heat dissipation. Metallised, thermoplastic, high definition reflector - medium optic (25°). Structure featuring a die-cast aluminium external contact frame with a white finish only. The internal ring is made of thermoplastic available in a range of painted and metallised finishes. Safety glass screen included
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a extra wide flood light distribution is composed of 3 powerled LEDs. The device body is made of aluminium and features a white ral 9010 finish, processed by means of coating. The ingress protection degree is IP45; the total weight is of 0.090 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be ceiling-mounted, with a 35 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
WE-EF
INGROUND UPLIGHT
OUTDOOR LIGHTING

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber complete with cable gland and 1.5 m of flexible PVC free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. Luminaire installation blockout and sealable junction box included in supply.

SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Recessed adjustable oval-hole downlight made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.
