IGUZZINI

POLE LIGHT
OUTDOOR LIGHTING
ADR0 .F5

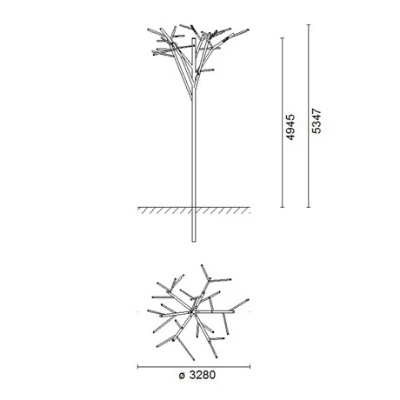

Outdoor luminaire with down light symmetrical optic, designed to use LED lamps. System complete with pole for burial ø102mm with external grounding system. Maximum height 5500mm. Structure made of stainless steel with white powder paint surface treatment. Door dimensions 220x45mm. Complete with circuit having Warm White monochrome LEDs and optic with plastic lens. Electronic ballast (95-240V ac 50/60Hz), inserted inside the door. Replaceable control gear unit.

Specification

Power
123W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
2950LM
Finishing
BROWN
IP Rating
IP65
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.93 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 126 x 126 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
IGUZZINI
RECESSED DOWNLIGHT
INDOOR LIGHTING
Round recessed luminaire with contact frame. Fixed version. The LED is set back to minimize glare . The main body is made of diecast aluminium with a radiant surface that guarantees optimum heat dissipation. Metallised, thermoplastic, high definition reflector - medium optic (25°). Structure with die-cast aluminium external contact frame with a single white finish. The internal ring is made of thermoplastic available in a range of painted and metallised finishes. Safety glass included Quick and easy tool free assembly.
LUCE & LIGHT
INGROUND UPLIGHT
OUTDOOR LIGHTING

Corso 4.0 code: CR4010000150SI recessed for outdoor applications; drive-over up to 2000 kg; recessed (wall, floor); Power consumption: 21W; Power supply: 230Vac; Lumen output at source: 2200 lm (3000K); Delivered lumen output: 1740 lm (3000K, 13°); 1 high power density COB LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 3000K; Optics: 13°: Compatible with H07RN-F cable with minimum cross-section 2x1 and cable Ø min. 7 mm max. 12 mm. Built-in power supply unit; Control system: ON/OFF; Ingress protection: IP65, IP67, IP69; Impact resistance: IK08; Fast installation: direct connection between fixture and mains power supply; on/off: in/out connection available on request.

SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

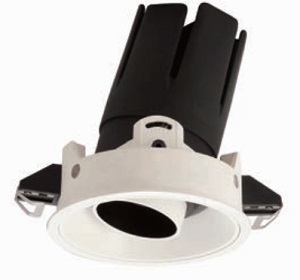

Recessed adjustable downlight made of aluminium housing with white powder coated finish. Inner reflector available in Silver, Chrome black, Mirror chrome and white color finish. Honeycomb accessory and IP44 available upon request.
