LINEALIGHT

PROJECTOR LIGHT
OUTDOOR LIGHTING
PERISKOP_81370M30

Single emission projectors for outdoor application. The super warm LED light source with a flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 3991 lm, with a 133.0 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66,IK09.

Specification

Power
30W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
3273LM
Finishing
DARK BROWN
IP Rating
IP66
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

ELR
RECESSED DOWNLIGHT
INDOOR LIGHTING

A series of minuscule pinhole downlight designed with extremely small aperture yet maintaining high light output ratio. Incorporating ELR’s signature modular concept design, LED modules are fully interchangeable with various choices to provide optimal illumination for all kinds of spaces.

SPARK
LINEAR DOWNLIGHT
INDOOR LIGHTING
Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.. Different type of bean angles.
TRAXON
LINEAR LIGHT
OUTDOOR LIGHTING

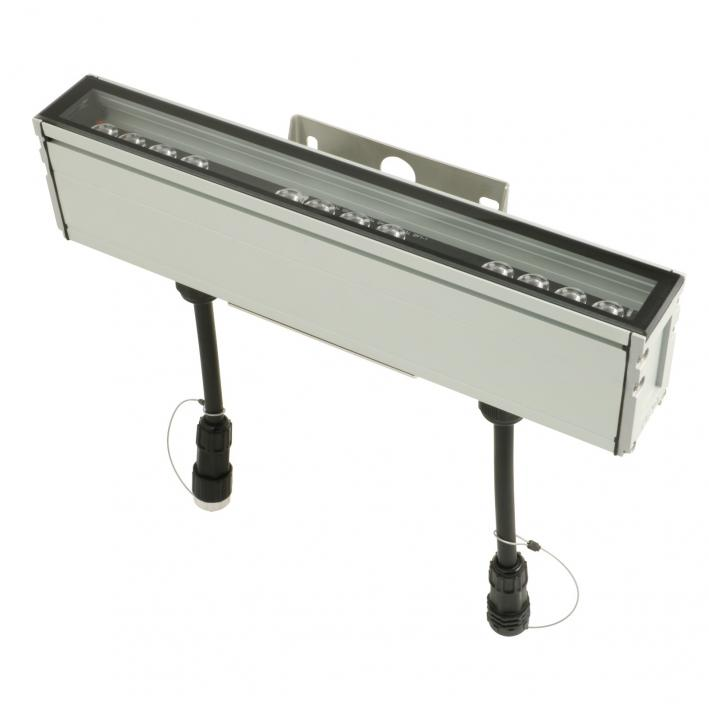

The Allegro Linear 2.1 AC RGBW family is a slim-profile, AC-line powered high-brightness luminaire. The family is controllable via DMX512, and is available in four lengths, from 320mm to 1215mm with 16.7 million additive RGB colors plus white, and various optics. The simplicity of the luminaire’s topology means it can be easily daisy-chained to form long runs. Remote Device Management (RDM) circuits are built into each luminaire that enables extensive control and monitoring of the entire lightin

XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with six wide flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 71°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;
