LINEALIGHT

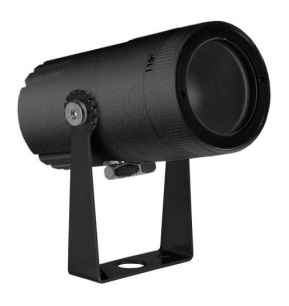

Spotlight designed to use LED lamps and a Very Wide Flood optic. The optical assembly and base is made of EN1706AC 46100LF aluminium alloy and subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The following painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance. 5 mm thick tempered sodium-calcium closing glass. Double adjustability allows a 360° rotation about the vertical axis and 90° tilting relative to the horizontal plane. Mechanical aiming locks for rotation on both the vertical axis and horizontal plane. Complete with a monochrome LED circuit and an Opti Beam Reflector optic system. The product includes a PG13.5 cable gland. Electronic On/Off ballast integrated in product. Option of using optic accessories assembled via an accessory holder frame. All external screws used are made of A2 stainless steel.

Floodlight luminaire intended for use with LED light sources. Comprising an optical compartment and base strip in die-cast aluminium and transparent tempered sodiumcalcium safety glass. Adjustable optical compartment in the horizontal plane (+90°/-50°). Graduated scale and mechanical aiming lock. Dual A2 stainless steel cable gland complete with output power supply cable. Ø116mm product with built-in DALI power supply unit.

Single emission ceiling lights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 36 powerled LEDs. The device body is made of aluminium 6060 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 7.4 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.1 m length. The device features protection class III and can be ceiling-mounted, with a 1432 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Single emission lines for outdoor application. The warm white LED light source with a extra wide flood light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 4.8 kg. The power supply cable is include and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98673(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
