LINEALIGHT

Ring shaped surface luminaire housing made of rolled aluminium extruded profile, seamlessly welded and black powder coated. The light inset consisting of highly reflective coated die-cast aluminium for improved thermal management. HPO (High Performance Opal) cover for uniform illumination; micro prismatic PMMA diffuser incl. diffuser film for homogeneous illumination and reduced luminance; sound absorbing elements available; energy-efficient LEDs with very good colour rendering. DIMENSION : D1060MM * H80MM

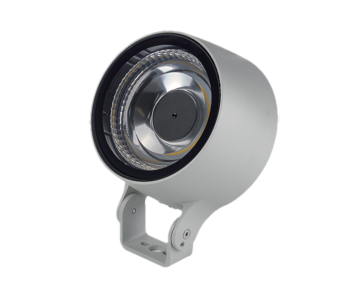

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, mounting bracket: 2 drilled holes Ø 7 mm, spacing 30‑40 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, highly efficient faceted rotationally symmetrical reflector, integral driver (AC/DC), CRI > 85, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 89°, luminous flux: 3572 lm, wattage: 46 W, delivered lumens 78 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,025 m², dimensions: Ø 194 mm, width 124 mm, weight 3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Wall Light to be installed On Wall Surface mounted. Electronic transformer 220-240V 5060Hz for phosphor LED integrated LED integrated. IP54, IK08.

The square cross-section silux K emits light from the diffused cover, 12 mm on the top and 3mm on both sides, so the light shines to the corners of the fixtures. 12×16mm homogeneous square section rigid light 3 different power consumption options to support energy saving project requirement With various length types and accessories ideal for various applications such as recessed mount, shelf and cove light.
