Product Detail | Bloxlimited

FLOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

ECLETIC 90_05.8123.40

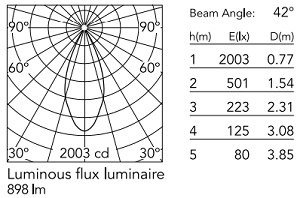

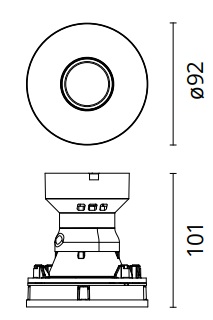

Eclectic Ø90. Non-adjustable Downlight. “Cone” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 41º cut-off angle. IP54 water tightness. Alternative options for lenses, orientation modules and style façades are available as spare parts.

Specification

Power

10.5W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

898LM

Finishing

WHITE

IP Rating

IP54

Color Rendering

CRI90

Driver

ON/OFF DRIVER

LINEALIGHT

CEILING LIGHT

OUTDOOR LIGHTING

Single emission ceiling lights for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 2.8 kg. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

WE-EF

BOLLARD

OUTDOOR LIGHTING

IP66/IP67. Class I. IK10. Marine-grade, all-aluminium construction. Pole section features galvanised steel reinforcement core. 5CE superior corrosion protection including PCS hardware. RFC™ Reflection Free Contour main lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering.

SIMES

INGROUND UPLIGHT

OUTDOOR LIGHTING

Die-cast EN AB-44100 and extruded EN AW-6060 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L front trim 3 mm thick. Toughened glass diffuser 6 mm thick for MINILINEAR Full-Glass, 10 mm thick for MINILINEAR Stainless Steel, 10 mm thick for LINEAR Stainless Steel. 99.98% pure aluminium reflectors. Stainless steel screws. Luminaire hard wired with single neoprene cable with cable gland. Silicone gaskets. Recessing box in stainless steel. Fast connector IP68 included.
