MEYER

PROJECTOR LIGHT
OUTDOOR LIGHTING
8 987 246 049

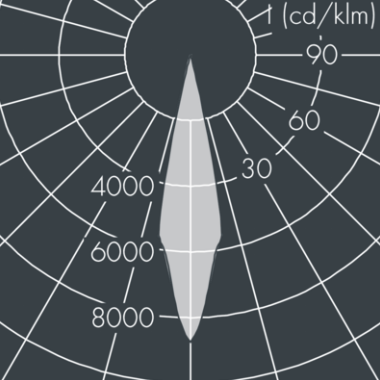

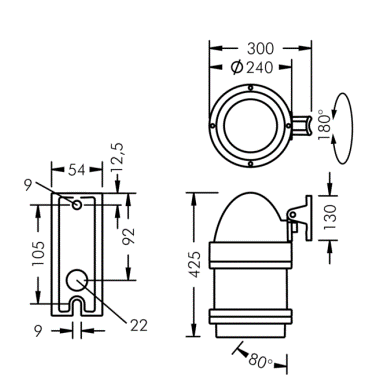

Housing made of extruded aluminum and corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 4 stainless steel screws, for installation on poles Ø 60‑100mm, adjustable aluminum mounting base, powder coated: 2 drilled holes Ø 9mm, tilt range: 80°, cable gland: M20, connecting terminal: 3 pole, tilt range: 180°, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, Beam angle (fwhm): 22°, luminous flux: 1445 lm, wattage: 55 W, delivered lumens 26 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,085 m², dimensions: Ø 240 mm, width 425 mm, weight 7.3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power
55W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1445LM
Finishing
BLACK
IP Rating
IP67
Color Rendering
CRI>80
Driver
ON/OFF DRIVER

See more

LINEALIGHT
INGROUND UPLIGHT
OUTDOOR LIGHTING
Single emission uplights for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1088 lm, with a 136.0 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68.
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission recessed downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20.
PROLICHT
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

The recessed spot MECHANIQ SQUARE EFFICIENCY DOUBLE from the familiy MECHANIQ consists of aluminum-die-cast. With 3 powder coated options 15625 colour combinations can be achieved. Stated photometric values correspond to operation by 500 mA; a suitable ballast needs to be sourced separately and is not scope of delivery. Dimming (# 220-0256) depends on the used ballast and may vary. The spot with direct illumination corresponds to protection class SK3 at IP20. Multiple applications possible due to comprehensive adjustment options. Rotability is 355° and additionally MECHANIQ SQUARE EFFICIENCY DOUBLE is tiltable by 45°. A PROLICHT lense pack is optionally available.

PHOS
ADJUSTABLE DOWNLIGHT
OUTDOOR LIGHTING
The Eclipse Soft is a recessed, tilt behind, adjustable downlight with a beautifully sculpted, trumpeted-shaped bezel. Unique, elegant small aperture. 360° rotation, 26° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires
