MEYER

PROJECTOR LIGHT
OUTDOOR LIGHTING
8 883 046 059

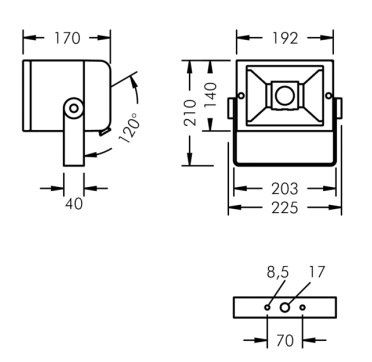

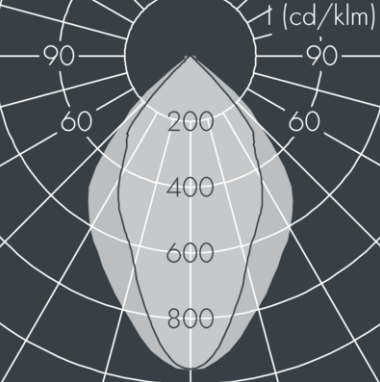

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 2 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: PG11, connecting terminal: 3 pole, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 50° / 72°, luminous flux: 2853 lm, wattage: 28 W, delivered lumens 102 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 140 × 175 × 190 mm, weight 2.1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power
28W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
2853LM
Finishing
BLACK
IP Rating
IP65
Color Rendering
CRI>80
Driver
ON/OFF DRIVER

See more

WE-EF
INGROUND UPLIGHT
OUTDOOR LIGHTING
IP67. IK07. Stainless steel inground section. Die-cast hood made from marine-grade aluminium alloy. Construction helps to prevent accumulation of insects, leaves and debris on lens and restricts glare to passers-by. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 0.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Luminaire installation blockout and sealable junction box included in supply.
LINEALIGHT
UNDERWATER LIGHT
OUTDOOR LIGHTING

Flexible neon strip for outdoor application. The brilliant white LED light source with a diffused light distribution composed of 560 top led LEDs. Luminaire body is made of techno polymer and features a white finish; the diffuser is made of PU. IP68, IK07

LUCI
LED LIGHT BAR
INDOOR LIGHTING
Tunable white strip light with two CCT LEDs alternating at narrow pitch ideal for concealed or backlight. Free choice of two different CCTs efficiently emphasizing, design intent,ambiance, and circadian lighting.
LINEALIGHT
FOOT LIGHT
INDOOR LIGHTING

Single emission uplights for outdoor application. The super warm white LED light source is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 1153 lm, with a 144.1 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a matt black (r9005) finish,The device features protection class III and can be floor-mounted with an outer casing, code 83039(for concrete or masonry).Compliant with the EN 60598-1 standard.
