MEYER

PROJECTOR LIGHT
OUTDOOR LIGHTING
8 890 046 039

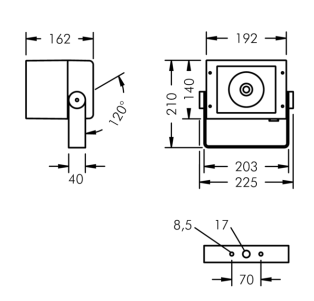

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish,integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 11° / 54°, luminous flux: 4225 lm, wattage: 48 W, delivered lumens 88 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 190 × 160 × 140 mm, weight 2.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power
48W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
4225LM
Finishing
BLACK
IP Rating
IP67
Color Rendering
CRI>80
Driver
ON/OFF DRIVER

See more

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98725 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
UNILAMP
FLOODLIGHT
OUTDOOR LIGHTING
ATHLON family is functional mini spotlight/ floodlight. The slim and clean design of Athlon allows a hidden installation. Athlon is designed for a streamlined time effective installation. Alanod Miro reflectors used in this luminaire are designed by Photopia high-end lighting engineering software. Tigh beam control utilizes selected lenses from world-renowned manufacturers. ATHLON is available with symmetric, asymmetric and bisymmetric light distributions and the broad range of accessories such as a ground, spike, tree strap, color filters, honey comb louver and glare shield hook makes it a dynamic floodlight choice. The graduated scale provides accuracy of the light distribution on the illuminated surface. ATHLON is suitable to light up small to medium sized objects or areas such as signage boards, ceiling, building facades, etc.
SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Recessed adjustable rectangular downlight come with snoot, luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

SPARK
SUSPENDED DOWNLIGHT
INDOOR LIGHTING
Suspended mount downlight luminaire body made of aluminium housing with black powder coated finish. Come with 1m hanging rod. Black finish and honeycomb accessory available upon request.It come with different types of bean angles. Two fitting heights 300 and 400mm.
