MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

8 885 046 019

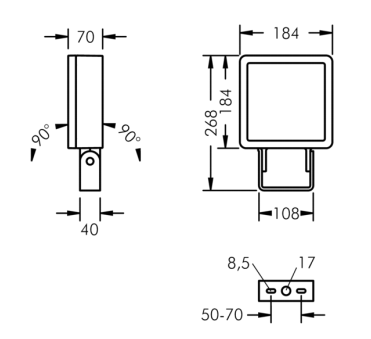

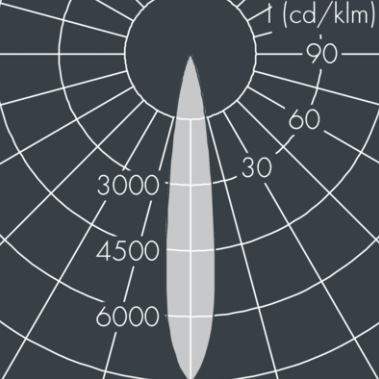

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, mounting bracket powder coated aluminum: 2 drilled holes Ø 8.5 mm, spacing 50‑70 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, efficient high gloss aluminum reflector in combination with hybrid lens for narrow beam light distribution in shallow luminaire housing, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 16°, luminous flux: 2723 lm, wattage: 26 W, delivered lumens 105 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,035 m², dimensions (L×H×W): 183 × 70 × 183 mm, weight 2.4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power

26W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2723LM

Finishing

BLACK

IP Rating

IP67

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

NEKO

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Round recessed downlight made of die-cast aluminium with white powder-coating finish

(RAL 9016) and white reflector; ON-OFF Driver; System Power 13W; measurements Ø78mm x

97mm; ceiling cutout of Ø68mm with a narrow mounting trim; ceiling thickness 5-20mm;

luminaire's weight is approximately 210g; rotation 350° and pivot max. 30°; CCT 3000K with

a System luminous flux of 800lm; high color rendering at an index of CRI90; after a lifetime of

50000h L80B10 min. 80% of the luminous flux with energy e

DELTALIGHT

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Dot.com come with Small version only needs 25mm of width, a nearly invisible appearance yet with visible impact. The Medium range includes an adjustable version - with tilting possibility of 30° - ideal for instance to emphasize an artwork on the wall. With an output up to 12W per luminaire, the Large range is the most powerful within the Dot.Com series. It comes in both recessed and surface mounted solutions. The luminaire is not only limited to spotlight beam angles, it also has linear wallwashers in its range for a soft, even light effect on vertical surfaces. These come as single luminaires, as modules to fit in the magnetic profiles and as a bespoke trimless profile solution, perfect to adapt the light to your specific desires.

LINEALIGHT

INGROUND UPLIGHT

OUTDOOR LIGHTING

Single emission uplights for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1088 lm, with a 136.0 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is notprovided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard) with an outer casing, code 99847 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions
