LINEALIGHT

LINEAR LIGHT
OUTDOOR LIGHTING
XENIA_8232M07

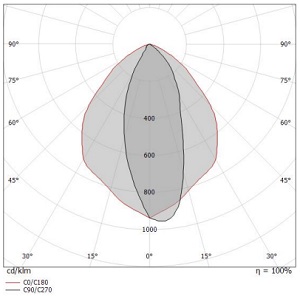

Single emission lines for outdoor application. The super warm LED light source with a asymmetric wallwasher light distribution is composed of 24 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 2544 lm, with a 148.8 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68.

Specification

Power
17.1W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
486LM
Finishing
ANODIZED ALUMINUM
IP Rating
IP68
Color Rendering
CRI>80
Driver
ON/OFF DRIVER

See more

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a wide flood light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 4.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98673 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
IGUZZINI
INGROUND LINEAR LIGHT
OUTDOOR LIGHTING

Direct light luminaire, designed to use monochrome LED lamps, DALI 48Vdc dimmable with searching and addressing function and transparent glass cover. Ground-, wall- and ceiling-recessed. Option of installation in continuous lines of up to a max length of 10.5m only for ground-recessed installation. Made up of a body, end caps, an outer casing and caps to be ordered separately. Extruded aluminium body, with die-cast aluminium end caps complete with silicone seals.

PLATEK
INGROUND UPLIGHT
OUTDOOR LIGHTING

Outdoor inground uplight body and front locking trim in AISI 316L stainless steel. IP68 Degree of protection with Full Dry system which avoids condensation inside the product. The Installation of the recessed housing in cast concrete with a 20-30 cm gravel soakaway. Only an IP68 connection to the power supply can guarantee the same protection to the fixture. IK07

PHOS
WALLWASHER
OUTDOOR LIGHTING
The Eyeconic Round Wall Wash is a recessed, fixed downlight with a 80mm bezel, wall wash lens and a discrete removeable anti-glare guard. Unique, elegant small aperture. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.
