Product Detail | Bloxlimited

LINEALIGHT

PROJECTOR LIGHT

OUTDOOR LIGHTING

PERISKOP_95378M30

Single emission projectors for outdoor application. The super warm LED light source with a medium flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 2349 lm, with a 130.5 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66, IK10.

Specification

Power

18W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

1701LM

Finishing

DARK BROWN

IP Rating

IP66

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

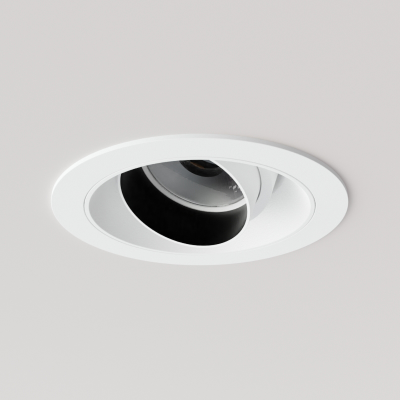

Aluminium housing adjustable downlight, wide-open shape die-cast aluminium heatsink design to enlarge the heat dissipation area, leading to a high heat dissipation efficiency and long-life on the fixture. Small cut-out diameter 55mm suitable for tiny ceiling. IP44.

LUCE & LIGHT

SPOTLIGHT

OUTDOOR LIGHTING

Pivot 2.0,projector for outdoor applications surface mounted (ceiling, wall, ground, spike), surface mounted (ceiling, wall, floor)Power consumption: 10W, 14WPower supply: 24Vdc

Lumen output at source: 1173 lm (3000K, 14W, CRI >90), 1397 lm (3000K, 14W, CRI 80), 821 lm (3000K, 10W, CRI >90), 978 lm (3000K, 10W, CRI 80)

Delivered lumen output: 1064 lm (3000K, 25°, 14W, CRI 80), 676 lm (3000K, 25°, 10W, CRI >90), 835 lm (3000K, 25°, 10W, CRI 80), 862 lm (3000K, 25°, 14W, CRI >90),1 COB LED, 3-st

TRAXON

CONTROL SYSTEM

INDOOR LIGHTING

The RDM Isolator repeats DMX and e:pix (one way) as well as RDM (bi-directional) signals over a galvanic isolation barrier. The power supply has a separate isolation barrier (“external” selected) or is aligned with the output potential (“DMX power” selected). Main features include : 1 kV isolation, USITT DMX512A and e:pix compatibility, 1 MBaud data speed (epix), RJ45 power back selectable, Separate, fully isolated power supply port, Flexible data ports (RJ45 or screw terminals), Full ANSI E1.20-2010 RDM support, Status LEDs.
